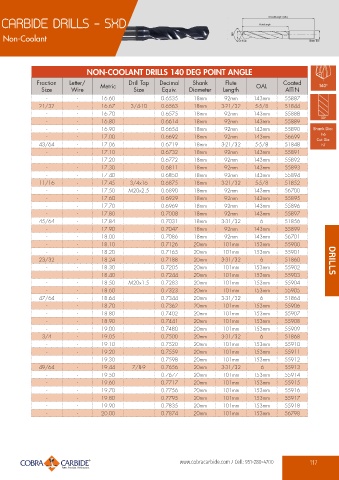

Page 117 - Cobra-Carbide-2020-Catalog

CARBIDE DRILLS - 5XD

Non-Coolant

NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Letter/ Metric Drill Tap Decimal Shank Flute OAL Coated
Size Wire Size Equiv. Diameter Length AlTiN
- - 16.60 0.6535 18mm 92mm 143mm 55887
21/32 - 16.67 3/4-10 0.6563 18mm 3-21/32 5-5/8 51844
- - 16.70 0.6575 18mm 92mm 143mm 55888
- - 16.80 0.6614 18mm 92mm 143mm 55889
- - 16.90 0.6654 18mm 92mm 143mm 55890
- - 17.00 0.6692 18mm 92mm 143mm 56699
43/64 - 17.06 0.6719 18mm 3-21/32 5-5/8 51848
- - 17.10 0.6732 18mm 92mm 143mm 55891
- - 17.20 0.6772 18mm 92mm 143mm 55892
- - 17.30 0.6811 18mm 92mm 143mm 55893
- - 17.40 0.6850 18mm 92mm 143mm 55894
11/16 - 17.45 3/4x16 0.6875 18mm 3-21/32 5-5/8 51852
- - 17.50 M20x2.5 0.6890 18mm 92mm 143mm 56700
- - 17.60 0.6929 18mm 92mm 143mm 55895
- - 17.70 0.6969 18mm 92mm 143mm 55896
- - 17.80 0.7008 18mm 92mm 143mm 55897
45/64 - 17.84 0.7031 18mm 3-31/32 6 51856
- - 17.90 0.7047 18mm 92mm 143mm 55899
- - 18.00 0.7086 18mm 92mm 143mm 56701
- - 18.10 0.7126 20mm 101mm 153mm 55900
- - 18.20 0.7165 20mm 101mm 153mm 55901
23/32 - 18.24 0.7188 20mm 3-31/32 6 51860 DRILLS
- - 18.30 0.7205 20mm 101mm 153mm 55902
- - 18.40 0.7244 20mm 101mm 153mm 55903
- - 18.50 M20x1.5 0.7283 20mm 101mm 153mm 55904
- - 18.60 0.7323 20mm 101mm 153mm 55905
47/64 - 18.64 0.7344 20mm 3-31/32 6 51864
- - 18.70 0.7362 20mm 101mm 153mm 55906
- - 18.80 0.7402 20mm 101mm 153mm 55907
- - 18.90 0.7441 20mm 101mm 153mm 55908
- - 19.00 0.7480 20mm 101mm 153mm 55909
3/4 - 19.05 0.7500 20mm 3-31/32 6 51868
- - 19.10 0.7520 20mm 101mm 153mm 55910
- - 19.20 0.7559 20mm 101mm 153mm 55911
- - 19.30 0.7598 20mm 101mm 153mm 55912
49/64 - 19.44 7/8-9 0.7656 20mm 3-31/32 6 55913
- - 19.50 0.7677 20mm 101mm 153mm 55914
- - 19.60 0.7717 20mm 101mm 153mm 55915
- - 19.70 0.7756 20mm 101mm 153mm 55916
- - 19.80 0.7795 20mm 101mm 153mm 55917
- - 19.90 0.7835 20mm 101mm 153mm 55918
- - 20.00 0.7874 20mm 101mm 153mm 56798
