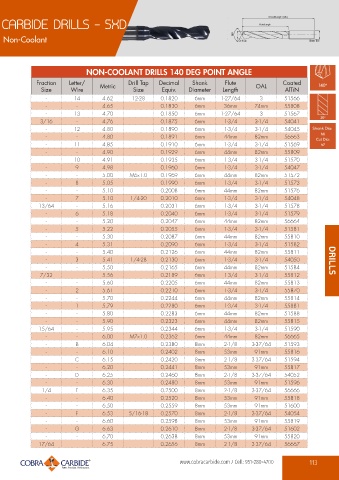

Page 113 - Cobra-Carbide-2020-Catalog
P. 113
CARBIDE DRILLS - 5XD
Non-Coolant
NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Letter/ Metric Drill Tap Decimal Shank Flute OAL Coated
Size Wire Size Equiv. Diameter Length AlTiN
- 14 4.62 12-28 0.1820 6mm 1-27/64 3 51566
- - 4.65 0.1830 6mm 36mm 74mm 55808
- 13 4.70 0.1850 6mm 1-27/64 3 51567
3/16 - 4.76 0.1875 6mm 1-3/4 3-1/4 54041
- 12 4.80 0.1890 6mm 1-3/4 3-1/4 54045
- - 4.80 0.1891 6mm 44mm 82mm 56663
- 11 4.85 0.1910 6mm 1-3/4 3-1/4 51569
- - 4.90 0.1929 6mm 44mm 82mm 55809
- 10 4.91 0.1935 6mm 1-3/4 3-1/4 51570
- 9 4.98 0.1960 6mm 1-3/4 3-1/4 54047
- - 5.00 M6x1.0 0.1969 6mm 44mm 82mm 51572
- 8 5.05 0.1990 6mm 1-3/4 3-1/4 51573
- - 5.10 0.2008 6mm 44mm 82mm 51576
- 7 5.10 1/4-20 0.2010 6mm 1-3/4 3-1/4 54048
13/64 - 5.16 0.2031 6mm 1-3/4 3-1/4 51578
- 6 5.18 0.2040 6mm 1-3/4 3-1/4 51579
- - 5.20 0.2047 6mm 44mm 82mm 56664
- 5 5.22 0.2055 6mm 1-3/4 3-1/4 51581
- - 5.30 0.2087 6mm 44mm 82mm 55810
- 4 5.31 0.2090 6mm 1-3/4 3-1/4 51582
- - 5.40 0.2126 6mm 44mm 82mm 55811
- 3 5.41 1/4-28 0.2130 6mm 1-3/4 3-1/4 54050 DRILLS
- - 5.50 0.2165 6mm 44mm 82mm 51584
7/32 - 5.56 0.2189 6mm 1-3/4 3-1/4 55812
- - 5.60 0.2205 6mm 44mm 82mm 55813
- 2 5.61 0.2210 6mm 1-3/4 3-1/4 55870
- - 5.70 0.2244 6mm 44mm 82mm 55814
- 1 5.79 0.2280 6mm 1-3/4 3-1/4 55881
- - 5.80 0.2283 6mm 44mm 82mm 51588
- - 5.90 0.2323 6mm 44mm 82mm 55815
15/64 - 5.95 0.2344 6mm 1-3/4 3-1/4 51590
- - 6.00 M7x1.0 0.2362 6mm 44mm 82mm 56665
- B 6.04 0.2380 8mm 2-1/8 3-37/64 51593
- - 6.10 0.2402 8mm 53mm 91mm 55816
- C 6.15 0.2420 8mm 2-1/8 3-37/64 51594
- - 6.20 0.2441 8mm 53mm 91mm 55817
- D 6.25 0.2460 8mm 2-1/8 3-37/64 54052
- - 6.30 0.2480 8mm 53mm 91mm 51596
1/4 E 6.35 0.2500 8mm 2-1/8 3-37/64 56666
- - 6.40 0.2520 8mm 53mm 91mm 55818
- - 6.50 0.2559 8mm 53mm 91mm 51600
- F 6.53 5/16-18 0.2570 8mm 2-1/8 3-37/64 54054
- - 6.60 0.2598 8mm 53mm 91mm 55819
- G 6.63 0.2610 8mm 2-1/8 3-37/64 51602
- - 6.70 0.2638 8mm 53mm 91mm 55820
17/64 - 6.75 0.2656 8mm 2-1/8 3-37/64 56667
www.cobracarbide.com / Cell: 951-280-4700 113
