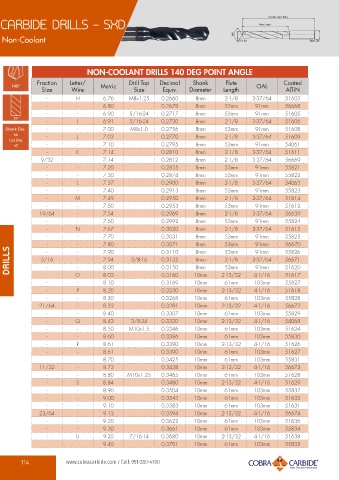

Page 114 - Cobra-Carbide-2020-Catalog

CARBIDE DRILLS - 5XD

Non-Coolant

NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Letter/ Metric Drill Tap Decimal Shank Flute OAL Coated
Size Wire Size Equiv. Diameter Length AlTiN
- H 6.76 M8x1.25 0.2660 8mm 2-1/8 3-37/64 51603
- - 6.80 0.2678 8mm 53mm 91mm 56668
- - 6.90 5/16-24 0.2717 8mm 53mm 91mm 51605
- I 6.91 5/16-24 0.2720 8mm 2-1/8 3-37/64 51606
- - 7.00 M8x1.0 0.2756 8mm 53mm 91mm 51608
- J 7.03 0.2770 8mm 2-1/8 3-37/64 51609
- - 7.10 0.2795 8mm 53mm 91mm 54061
- K 7.14 0.2810 8mm 2-1/8 3-37/64 51611
9/32 - 7.14 0.2812 8mm 2-1/8 3-37/64 56669
- - 7.20 0.2835 8mm 53mm 91mm 55821
- - 7.30 0.2874 8mm 53mm 91mm 55822
- L 7.37 0.2900 8mm 2-1/8 3-37/64 54063
- - 7.40 0.2913 8mm 53mm 91mm 55823
- M 7.49 0.2950 8mm 2-1/8 3-37/64 51614
- - 7.50 0.2953 8mm 53mm 91mm 51612
19/64 - 7.54 0.2969 8mm 2-1/8 3-37/64 56639
- - 7.60 0.2992 8mm 53mm 91mm 55824
- N 7.67 0.3020 8mm 2-1/8 3-37/64 51615
- - 7.70 0.3031 8mm 53mm 91mm 55825
- - - - 7.80 0.3071 8mm 53mm 91mm 56670
DRILLS 5/16 - - 7.94 3/8-16 0.3125 8mm 2-1/8 3-37/64 56671
53mm
91mm
7.90
8mm
0.3110
55826
53mm
8mm
0.3150
51620
-
8.00
91mm
0.3189
8.10
10mm
61mm
103mm
55827
- - O - 8.03 0.3160 10mm 2-13/32 4-1/16 51617
- P 8.20 0.3230 10mm 2-13/32 4-1/16 51618
- - 8.30 0.3268 10mm 61mm 103mm 55828
21/64 - 8.33 0.3281 10mm 2-13/32 4-1/16 56672
- - 8.40 0.3307 10mm 61mm 103mm 55829
- Q 8.43 3/8-24 0.3320 10mm 2-13/32 4-1/16 54068
- - 8.50 M10x1.5 0.3346 10mm 61mm 103mm 51624
- - 8.60 0.3386 10mm 61mm 103mm 55830
- R 8.61 0.3390 10mm 2-13/32 4-1/16 51626
- - 8.61 0.3390 10mm 61mm 103mm 51627
- - 8.70 0.3425 10mm 61mm 103mm 55831
11/32 - 8.73 0.3438 10mm 2-13/32 4-1/16 56673
- - 8.80 M10x1.25 0.3465 10mm 61mm 103mm 51628
- S 8.84 0.3480 10mm 2-13/32 4-1/16 51629
- - 8.90 0.3504 10mm 61mm 103mm 55832
- - 9.00 0.3543 10mm 61mm 103mm 51632
- - 9.10 0.3583 10mm 61mm 103mm 51631
23/64 - 9.13 0.3594 10mm 2-13/32 4-1/16 56674
- - 9.20 0.3622 10mm 61mm 103mm 51636
- - 9.30 0.3661 10mm 61mm 103mm 55834
- U 9.35 7/16-14 0.3680 10mm 2-13/32 4-1/16 51638
- - 9.40 0.3701 10mm 61mm 103mm 55835
