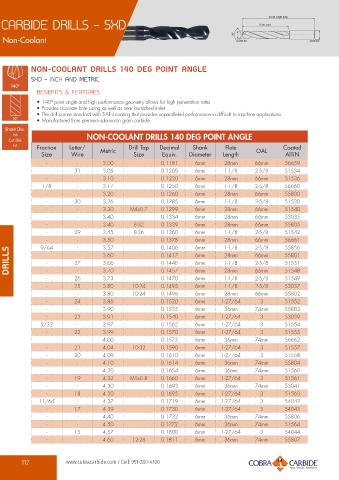

P. 112
CARBIDE DRILLS - 5XD
Non-Coolant
NON-COOLANT DRILLS 140 DEG POINT ANGLE
5XD - INCH AND METRIC
BENEFITS & FEATURES
• 140 point angle and high performance geometry allows for high penetration rates
0
• Provides accurate hole sizing as well as near burnished holes
• The drill comes standard with TiAlN coating that provides unparalleled performance in difficult to machine applications
• Manufactured from premium submicron grain carbide
NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Letter/ Metric Drill Tap Decimal Shank Flute OAL Coated
Size Wire Size Equiv. Diameter Length AlTiN
- - 3.00 0.1181 6mm 28mm 66mm 56659
- 31 3.05 0.1200 6mm 1-1/8 2-5/8 51534
- - 3.10 0.1220 6mm 28mm 66mm 51536
1/8 - 3.17 0.1250 6mm 1-1/8 2-5/8 56660
- - 3.20 0.1260 6mm 28mm 66mm 55800
- 30 3.26 0.1285 6mm 1-1/8 2-5/8 51530
- - 3.30 M4x0.7 0.1299 6mm 28mm 66mm 51540
- - 3.40 0.1334 6mm 28mm 66mm 53035
- - 3.40 8-32 0.1339 6mm 28mm 66mm 55805
- 29 3.45 8-36 0.1360 6mm 1-1/8 2-5/8 51542
- - - 3.50 0.1378 6mm 28mm 66mm 56661
0.1406
2-5/8
1-1/8
3.57
9/64
55856
6mm
DRILLS - - 27 3.60 0.1417 6mm 28mm 66mm 55801
-
0.1440
6mm
1-1/8
3.66
51551
2-5/8
-
0.1470
3.73
51549
2-5/8
- - 26 3.70 0.1457 6mm 28mm 66mm 51548
6mm
1-1/8
- 25 3.80 10-24 0.1495 6mm 1-1/8 2-5/8 53037
- - 3.80 10-24 0.1496 6mm 28mm 66mm 55802
- 24 3.86 0.1520 6mm 1-27/64 3 51552
- - 3.90 0.1535 6mm 36mm 74mm 55803
- 23 3.91 0.1540 6mm 1-27/64 3 53039
5/32 - 3.97 0.1562 6mm 1-27/64 3 51554
- 22 3.99 0.1570 6mm 1-27/64 3 51555
- - 4.00 0.1575 6mm 36mm 74mm 56662
- 21 4.04 10-32 0.1590 6mm 1-27/64 3 51557
- 20 4.09 0.1610 6mm 1-27/64 3 51558
- - 4.10 0.1614 6mm 36mm 74mm 55804
- - 4.20 0.1654 6mm 36mm 74mm 51560
- 19 4.22 M5x0.8 0.1660 6mm 1-27/64 3 51561
- - 4.30 0.1693 6mm 36mm 74mm 53041
- 18 4.30 0.1695 6mm 1-27/64 3 51563
11/64 - 4.37 0.1719 6mm 1-27/64 3 54042
- 17 4.39 0.1730 6mm 1-27/64 3 54043
- - 4.40 0.1732 6mm 36mm 74mm 55806
- - 4.50 0.1772 6mm 36mm 74mm 51564
- 15 4.57 0.1800 6mm 1-27/64 3 54044
- - 4.60 12-28 0.1811 6mm 36mm 74mm 55807
