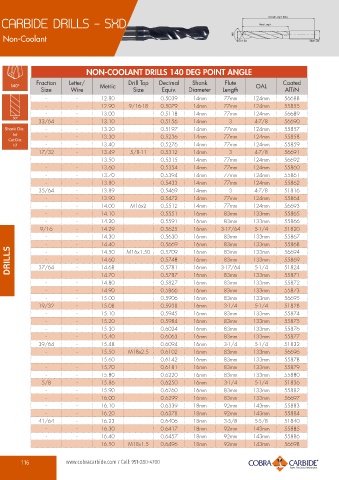

Page 116 - Cobra-Carbide-2020-Catalog
P. 116
CARBIDE DRILLS - 5XD
Non-Coolant
NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Letter/ Metric Drill Tap Decimal Shank Flute OAL Coated
Size Wire Size Equiv. Diameter Length AlTiN
- - 12.80 0.5039 14mm 77mm 124mm 56688
- - 12.90 9/16-18 0.5079 14mm 77mm 124mm 55855
- - 13.00 0.5118 14mm 77mm 124mm 56689
33/64 - 13.10 0.5156 14mm 3 4-7/8 56690
- - 13.20 0.5197 14mm 77mm 124mm 55857
- - 13.30 0.5236 14mm 77mm 124mm 55858
- - 13.40 0.5276 14mm 77mm 124mm 55859
17/32 - 13.49 5/8-11 0.5312 14mm 3 4-7/8 56691
- - 13.50 0.5315 14mm 77mm 124mm 56692
- - 13.60 0.5354 14mm 77mm 124mm 55860
- - 13.70 0.5394 14mm 77mm 124mm 55861
- - 13.80 0.5433 14mm 77mm 124mm 55862
35/64 - 13.89 0.5469 14mm 3 4-7/8 51816
- - 13.90 0.5472 14mm 77mm 124mm 55864
- - 14.00 M16x2 0.5512 14mm 77mm 124mm 56693
- - 14.10 0.5551 16mm 83mm 133mm 55865
- - 14.20 0.5591 16mm 83mm 133mm 55866
9/16 - 14.29 0.5625 16mm 3-17/64 5-1/4 51820
- - 14.30 0.5630 16mm 83mm 133mm 55867
- - - - 14.40 M16x1.50 0.5669 16mm 83mm 133mm 55868
DRILLS 37/64 - - 14.60 0.5748 16mm 3-17/64 133mm 55869
83mm
56694
14.50
0.5709
133mm
16mm
83mm
-
51824
16mm
0.5781
5-1/4
14.68
133mm
14.80
- - - - 14.70 0.5787 16mm 83mm 133mm 55871
83mm
16mm
0.5827
55872
- - 14.90 0.5866 16mm 83mm 133mm 55873
- - 15.00 0.5906 16mm 83mm 133mm 56695
19/32 - 15.08 0.5938 16mm 3-1/4 5-1/4 51828
- - 15.10 0.5945 16mm 83mm 133mm 55874
- - 15.20 0.5984 16mm 83mm 133mm 55875
- - 15.30 0.6024 16mm 83mm 133mm 55876
- - 15.40 0.6063 16mm 83mm 133mm 55877
39/64 - 15.48 0.6094 16mm 3-1/4 5-1/4 51832
- - 15.50 M18x2.5 0.6102 16mm 83mm 133mm 56696
- - 15.60 0.6142 16mm 83mm 133mm 55878
- - 15.70 0.6181 16mm 83mm 133mm 55879
- - 15.80 0.6220 16mm 83mm 133mm 55880
5/8 - 15.86 0.6250 16mm 3-1/4 5-1/4 51836
- - 15.90 0.6260 16mm 83mm 133mm 55882
- - 16.00 0.6299 16mm 83mm 133mm 56697
- - 16.10 0.6339 18mm 92mm 143mm 55883
- - 16.20 0.6378 18mm 92mm 143mm 55884
41/64 - 16.23 0.6406 18mm 3-5/8 5-5/8 51840
- - 16.30 0.6417 18mm 92mm 143mm 55885
- - 16.40 0.6457 18mm 92mm 143mm 55886
- - 16.50 M18x1.5 0.6496 18mm 92mm 143mm 56698
