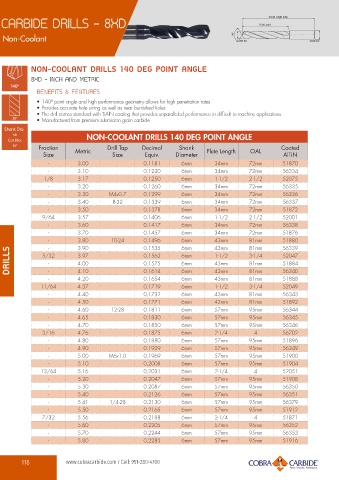

Page 118 - Cobra-Carbide-2020-Catalog

CARBIDE DRILLS - 8XD

Non-Coolant

NON-COOLANT DRILLS 140 DEG POINT ANGLE

8XD - INCH AND METRIC
BENEFITS & FEATURES

• 140 point angle and high performance geometry allows for high penetration rates
0
• Provides accurate hole sizing as well as near burnished holes
• The drill comes standard with TiAlN coating that provides unparalleled performance in difficult to machine applications
• Manufactured from premium submicron grain carbide

NON-COOLANT DRILLS 140 DEG POINT ANGLE

Fraction Metric Drill Tap Decimal Shank Flute Length OAL Coated
Size Size Equiv. Diameter AlTiN
- 3.00 0.1181 6mm 34mm 72mm 51870
- 3.10 0.1220 6mm 34mm 72mm 56334
1/8 3.17 0.1250 6mm 1-1/2 2-1/2 52075
- 3.20 0.1260 6mm 34mm 72mm 56335
- 3.30 M4x0.7 0.1299 6mm 34mm 72mm 56336
- 3.40 8-32 0.1339 6mm 34mm 72mm 56337
- 3.50 0.1378 6mm 34mm 72mm 51872
9/64 3.57 0.1406 6mm 1-1/2 2-1/2 52001
- 3.60 0.1417 6mm 34mm 72mm 56338
- 3.70 0.1457 6mm 34mm 72mm 51876
- - 3.80 10-24 0.1496 6mm 43mm 81mm 51880
81mm
56339
0.1535
6mm
3.90
43mm
DRILLS 5/32 3.97 0.1562 6mm 1-1/2 3-1/4 52047
6mm
51884
0.1575
81mm
4.00
-
43mm
51888
81mm
- - 4.10 0.1614 6mm 43mm 81mm 56340
4.20
43mm
0.1654
6mm
11/64 4.37 0.1719 6mm 1-1/2 3-1/4 52049
- 4.40 0.1732 6mm 43mm 81mm 56343
- 4.50 0.1771 6mm 43mm 81mm 51892
- 4.60 12-28 0.1811 6mm 57mm 95mm 56344
- 4.65 0.1830 6mm 57mm 95mm 56345
- 4.70 0.1850 6mm 57mm 95mm 56346
3/16 4.76 0.1875 6mm 2-1/4 4 56702
- 4.80 0.1880 6mm 57mm 95mm 51896
- 4.90 0.1929 6mm 57mm 95mm 56349
- 5.00 M6x1.0 0.1969 6mm 57mm 95mm 51900
- 5.10 0.2008 6mm 57mm 95mm 51904
13/64 5.16 0.2031 6mm 2-1/4 4 52051
- 5.20 0.2047 6mm 57mm 95mm 51908
- 5.30 0.2087 6mm 57mm 95mm 56350
- 5.40 0.2126 6mm 57mm 95mm 56351
- 5.41 1/4-28 0.2130 6mm 57mm 95mm 56379
- 5.50 0.2165 6mm 57mm 95mm 51912
7/32 5.56 0.2188 6mm 2-1/4 4 51871
- 5.60 0.2205 6mm 57mm 95mm 56352
- 5.70 0.2244 6mm 57mm 95mm 56353
- 5.80 0.2283 6mm 57mm 95mm 51916
