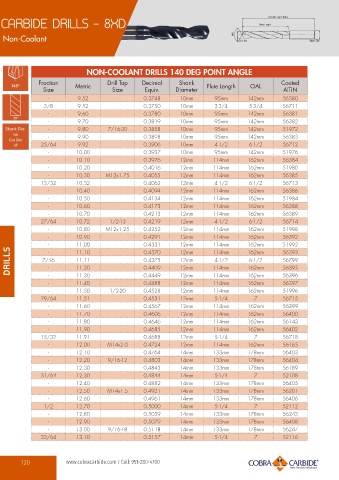

CARBIDE DRILLS - 8XD

Non-Coolant

NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Metric Drill Tap Decimal Shank Flute Length OAL Coated
Size Size Equiv. Diameter AlTiN
- 9.52 0.3748 10mm 95mm 142mm 56380
3/8 9.52 0.3750 10mm 3-3/4 5-3/4 56711
- 9.60 0.3780 10mm 95mm 142mm 56381
- 9.70 0.3819 10mm 95mm 142mm 56382
- 9.80 7/16-20 0.3858 10mm 95mm 142mm 51972
- 9.90 0.3898 10mm 95mm 142mm 56383
25/64 9.92 0.3906 10mm 4-1/2 6-1/2 56712
- 10.00 0.3937 10mm 95mm 142mm 51976
- 10.10 0.3976 12mm 114mm 162mm 56384
- 10.20 0.4016 12mm 114mm 162mm 51980
- 10.30 M12x1.75 0.4055 12mm 114mm 162mm 56385
13/32 10.32 0.4062 12mm 4-1/2 6-1/2 56713
- 10.40 0.4094 12mm 114mm 162mm 56386
- 10.50 0.4134 12mm 114mm 162mm 51984
- 10.60 0.4173 12mm 114mm 162mm 56388
- 10.70 0.4213 12mm 114mm 162mm 56389
27/64 10.72 1/2-13 0.4219 12mm 4-1/2 6-1/2 56714
- 10.80 M12x1.25 0.4252 12mm 114mm 162mm 51988
- 10.90 0.4291 12mm 114mm 162mm 56392
- - 11.00 0.4331 12mm 114mm 162mm 51992
DRILLS 7/16 11.11 0.4375 12mm 114mm 162mm 56799
11.10
0.4370
114mm
12mm
56393
162mm
6-1/2
4-1/2
0.4409
12mm
56395
11.20
-
11.40
162mm
56397
114mm
0.4488
12mm
- - 11.30 0.4449 12mm 114mm 162mm 56396
- 11.50 1/2-20 0.4528 12mm 114mm 162mm 51996
29/64 11.51 0.4531 12mm 5-1/4 7 56715
- 11.60 0.4567 12mm 114mm 162mm 56399
- 11.70 0.4606 12mm 114mm 162mm 56400
- 11.80 0.4646 12mm 114mm 162mm 56143
- 11.90 0.4685 12mm 114mm 162mm 56402
15/32 11.91 0.4688 12mm 5-1/4 7 56718
- 12.00 M14x2.0 0.4724 12mm 114mm 162mm 56165
- 12.10 0.4764 14mm 133mm 178mm 56403
- 12.20 9/16-12 0.4803 14mm 133mm 178mm 56404
- 12.30 0.4843 14mm 133mm 178mm 56189
31/64 12.30 0.4844 14mm 5-1/4 7 52108
- 12.40 0.4882 14mm 133mm 178mm 56405
- 12.50 M14x1.5 0.4921 14mm 133mm 178mm 56201
- 12.60 0.4961 14mm 133mm 178mm 56406
1/2 12.70 0.5000 14mm 5-1/4 7 52112
- 12.80 0.5039 14mm 133mm 178mm 56243
- 12.90 0.5079 14mm 133mm 178mm 56408
- 13.00 9/16-18 0.5118 14mm 133mm 178mm 56247
33/64 13.10 0.5157 14mm 5-1/4 7 52116
