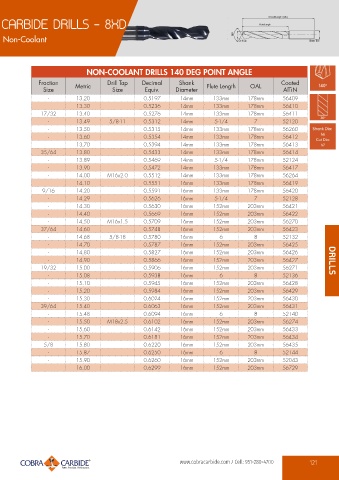

Page 121 - Cobra-Carbide-2020-Catalog

CARBIDE DRILLS - 8XD

Non-Coolant

NON-COOLANT DRILLS 140 DEG POINT ANGLE
Fraction Metric Drill Tap Decimal Shank Flute Length OAL Coated
Size Size Equiv. Diameter AlTiN
- 13.20 0.5197 14mm 133mm 178mm 56409
- 13.30 0.5236 14mm 133mm 178mm 56410
17/32 13.40 0.5276 14mm 133mm 178mm 56411
- 13.49 5/8-11 0.5312 14mm 5-1/4 7 52120
- 13.50 0.5315 14mm 133mm 178mm 56260
- 13.60 0.5354 14mm 133mm 178mm 56412
- 13.70 0.5394 14mm 133mm 178mm 56413
35/64 13.80 0.5433 14mm 133mm 178mm 56414
- 13.89 0.5469 14mm 5-1/4 178mm 52124
- 13.90 0.5472 14mm 133mm 178mm 56417
- 14.00 M16x2.0 0.5512 14mm 133mm 178mm 56264
- 14.10 0.5551 16mm 133mm 178mm 56419
9/16 14.20 0.5591 16mm 133mm 178mm 56420
- 14.29 0.5626 16mm 5-1/4 7 52128
- 14.30 0.5630 16mm 152mm 203mm 56421
- 14.40 0.5669 16mm 152mm 203mm 56422
- 14.50 M16x1.5 0.5709 16mm 152mm 203mm 56270
37/64 14.60 0.5748 16mm 152mm 203mm 56423
- 14.68 5/8-18 0.5780 16mm 6 8 52132
- 14.70 0.5787 16mm 152mm 203mm 56425
- 14.80 0.5827 16mm 152mm 203mm 56426
- 14.90 0.5866 16mm 152mm 203mm 56427 DRILLS
19/32 15.00 0.5906 16mm 152mm 203mm 56271
- 15.08 0.5938 16mm 6 8 52136
- 15.10 0.5945 16mm 152mm 203mm 56428
- 15.20 0.5984 16mm 152mm 203mm 56429
- 15.30 0.6024 16mm 152mm 203mm 56430
39/64 15.40 0.6063 16mm 152mm 203mm 56431
- 15.48 0.6094 16mm 6 8 52140
- 15.50 M18x2.5 0.6102 16mm 152mm 203mm 56274
- 15.60 0.6142 16mm 152mm 203mm 56433
- 15.70 0.6181 16mm 152mm 203mm 56434
5/8 15.80 0.6220 16mm 152mm 203mm 56435
- 15.87 0.6250 16mm 6 8 52144
- 15.90 0.6260 16mm 152mm 203mm 52043
16.00 0.6299 16mm 152mm 203mm 56729

www.cobracarbide.com / Cell: 951-280-4700 121
