EMSC 3/16 Tip x 3/8 shk 3FSE 1° Taper Bright 1-3/4 x 3-1/2
Single end· Regular length for general-purpose milling.

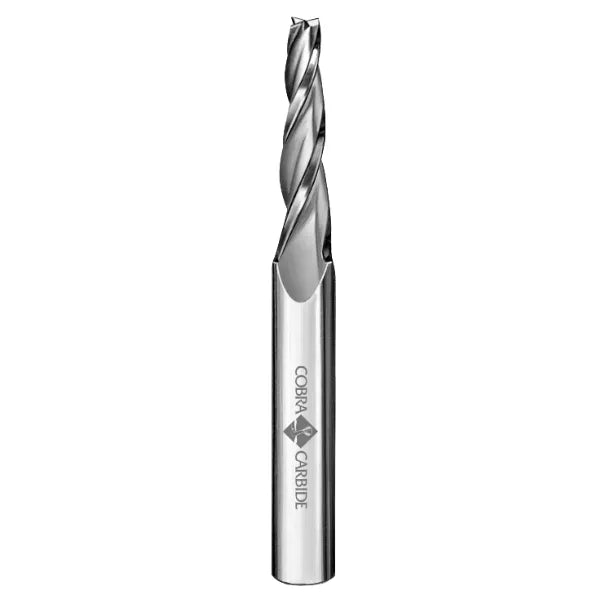

Taper End Mill for Sinking and Mold Cavities
The Taper End Mill s engineered for precision machining in mold cavities, tapered walls, and deep pocket features. The tapered profile increases tool rigidity while maintaining a small cutting diameter, allowing accurate machining in confined geometries. Its flute design balances chip evacuation and cutting stability, making it effective for both roughing and finishing operations. Available in multiple taper angles and coated options, this tool delivers reliable performance when machining steel.
- Tapered geometry increases tool strength and reduces deflection in deep cavities
- Square end profile for precise corners and flat-bottom machining
- High-precision shank tolerance (H6) and cutting diameter tolerance (H10)
- Best for steel
- Good for aluminum, nickel, stainless steel, and iron
- Sinking and mold cavities
Piece Count: 1
Material: Solid Carbide
Tool Type: Taper End Mill
End Style: Square End
Helix Angle: 30
Shank Diameter (in): 0.375
OAL (in): 3-1/2
Flute Length (in): 1.75
Taper per Side: 1°
Tip Diameter (in): 0.1875
No. of Flutes: 3
Coating: Uncoated
Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance
Couldn't load pickup availability
Uncoated, Bright
- Steel
- Stainless Steel
- Hardened Steel
- Cast Iron
- Aluminum
- Titanium
- Nickel/Inconel
- Non-Ferrous
- Composites
