EMSC 7/32 2FSE (R.010) 45° Copperhead-NF APACHE 3/4 x 2-1/2
Single end· Regular length for general-purpose milling.

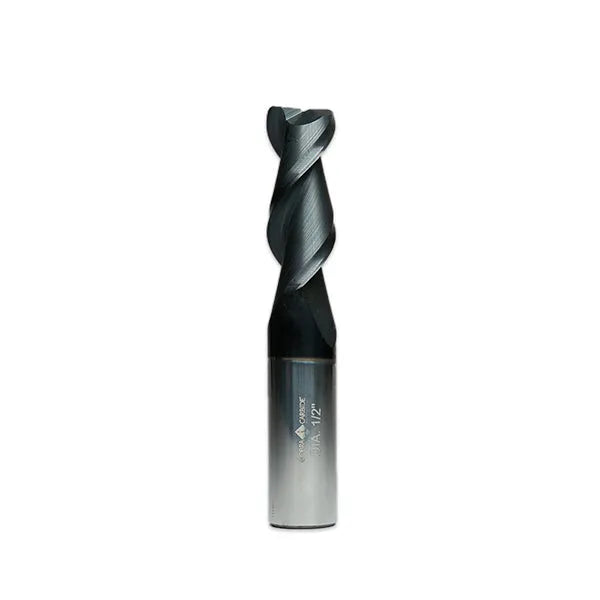

Copperhead Pro High-Performance Endmill
The Copperhead Pro end mill is engineered for high-speed machining in aluminum and non-ferrous materials. Its optimized geometry and polished flute design deliver maximum material removal, superior chip evacuation, and extended tool life for slotting and profiling applications.
- Upgraded sub-micron grade carbide to improve tool life
- 45° helix angle
- Square end produces sharp internal corners and maximized material removal
- Excellent for slotting and profiling at high speeds
- Best for aluminum and non-ferrous materials
- Maximum metal removal and better chip evacuation
Piece Count: 1
Cut Diameter (in): 0.21875
LOC (in): 0.75
Shank Diameter (in): 0.21875
OAL (in): 2.5
No. of Flutes: 2
Coating: Apache
Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance
Couldn't load pickup availability
Apache
Hardness: 3,200 – 3,800 HV
Max Operating Temp: 1,832°F+
Friction Coefficient: ~0.4
Primary Applications: Heavy-duty profiling of titanium, Inconel, and aerospace superalloys
Proprietary multi-layer formula designed to handle the extreme thermal and mechanical shock found in aerospace pocketing and slotting of heat-resistant alloys.
- Steel
- Stainless Steel
- Hardened Steel
- Cast Iron
- Aluminum
- Titanium
- Nickel/Inconel
- Non-Ferrous
- Composites
