EMSC 7/16 4FSEDM 90° Bright 7/16 x 1 x 2-3/4
Single end· Regular length for general-purpose milling.

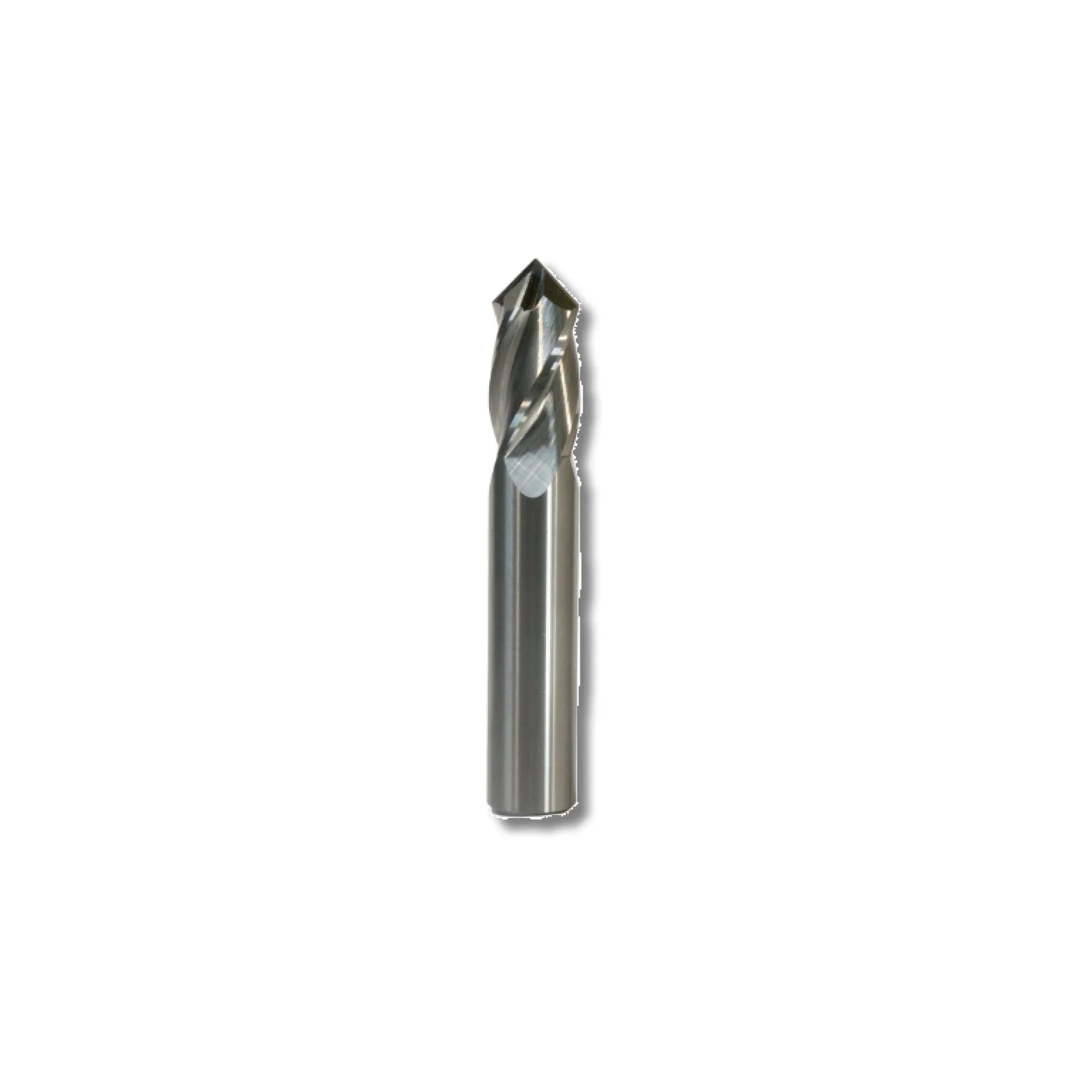

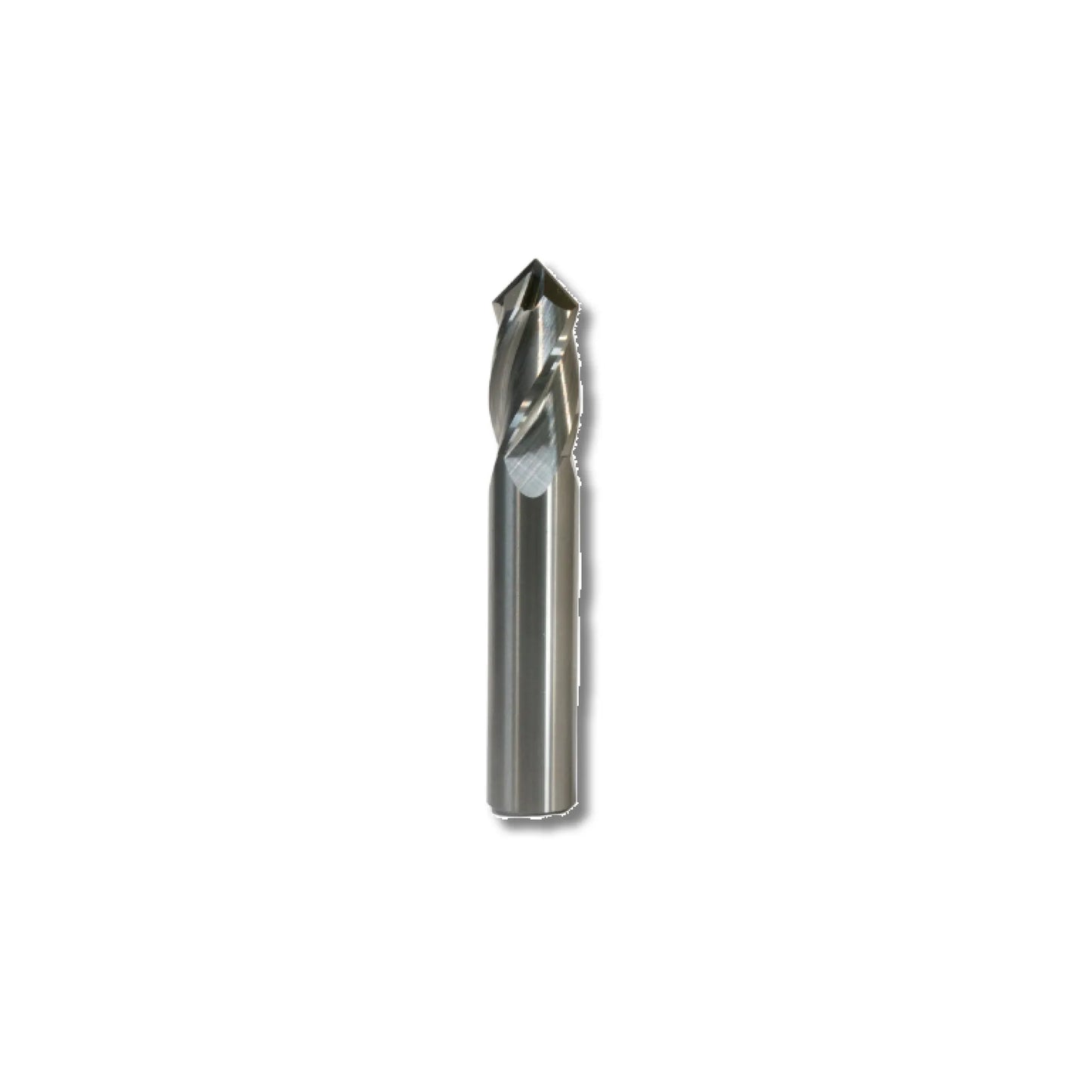

90° 4-Flute Drill Mill for Drilling, Slotting, and Chamfering
The 90° Drill Mill 4-Flute is a versatile, multi-purpose cutting tool designed to perform drilling, slotting, and chamfering operations with precision and efficiency. Featuring a 90° point angle, it is ideal for creating accurate chamfers, spotting holes, and initiating drill points with excellent centering capability. The 4-flute design provides increased rigidity and improved surface finish, making it well-suited for machining tougher materials such as steel, stainless steel, iron, and hardened steel, while still performing effectively in aluminum and other alloys. Its center-cutting geometry allows for plunging and ramping, while the optimized flute design ensures stable cutting and consistent chip control. Manufactured from solid carbide, this drill mill delivers durability, heat resistance, and reliable performance across a wide range of machining applications.
- 90° point angle for accurate chamfering and spot drilling
- 4-flute design for increased rigidity and improved surface finish
- Center-cutting geometry allows plunging and ramping operations
- Solid carbide construction for strength and wear resistance
- Best for aluminum, steel, and iron
- Good for stainless steel and hardened steel
- For drilling, slotting, and chamfering
Piece Count: 1
Material: Solid Carbide
Tool Type: 4-Flute Drill Mill
Included Angle: 90
Color: Bright
Cut Diameter (in): 0.4375
LOC (in): 1
Shank Diameter (in): 0.4375
OAL (in): 2.75
No. of Flutes: 4
Coating: Uncoated, Bright
Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance
Couldn't load pickup availability
Uncoated, Bright
- Steel
- Stainless Steel
- Hardened Steel
- Cast Iron
- Aluminum
- Titanium
- Nickel/Inconel
- Non-Ferrous
- Composites
