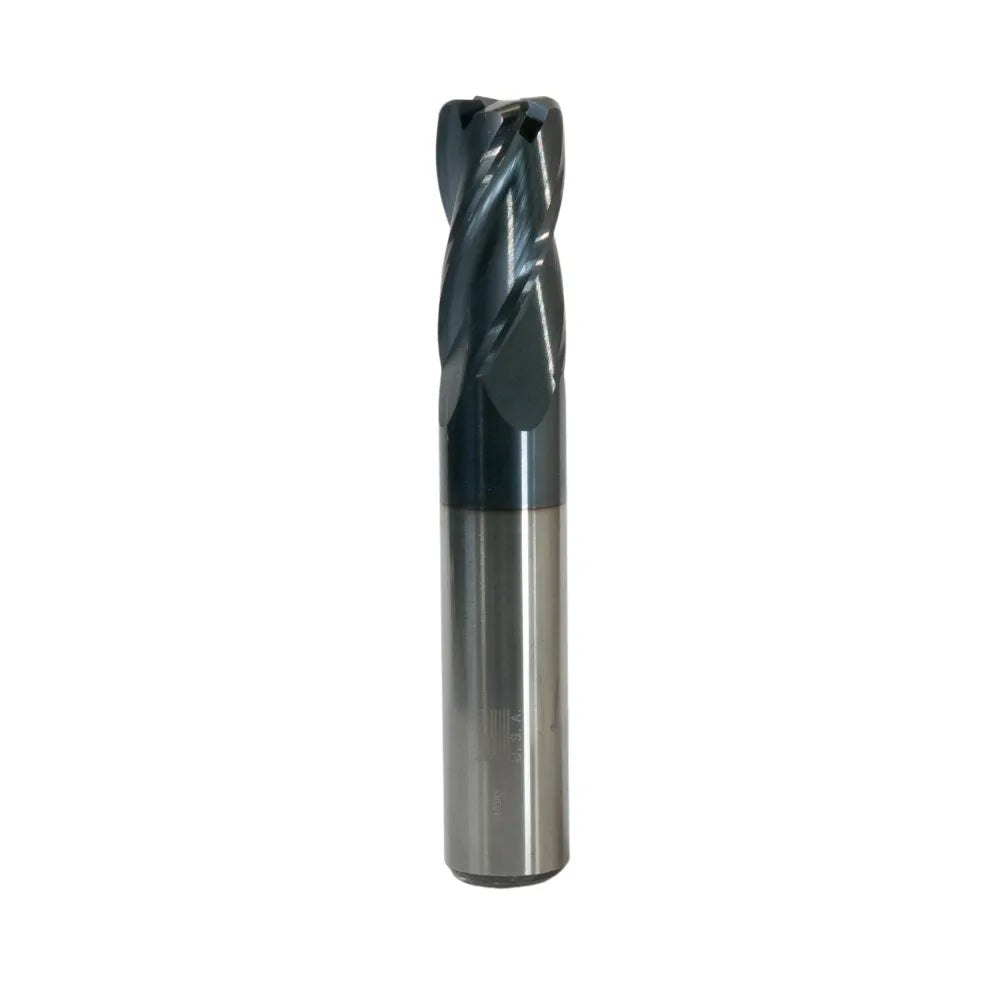

EMSC 5/16 4FSER (.045) AlTiN C.Radius 13/16 x 2-1/2
EMSC 5/16 4FSER (.045) AlTiN C.Radius 13/16 x 2-1/2
Made from premium solid carbide for durability and precision.
Single end, regular length for general-purpose milling.
4-flute geometry for excellent surface finish and tool strength.
High-Strength Profiling with Enhanced Wear Resistance
This EMSC 4 Flute Single End Regular (4FSER) Corner Radius End Mill is constructed from solid carbide and coated with AlTiN for superior heat resistance and extended tool life. The corner radius geometry reinforces the cutting edge, reducing chipping while improving surface finish in profiling and side milling applications. The 4-flute design increases rigidity and supports stable cutting performance in steel and stainless steel. The AlTiN coating enables higher cutting speeds and improved durability in demanding machining environments.
- 4 flute single end regular (4FSER) design
- Corner radius geometry for strengthened cutting edges
- Solid carbide construction for rigidity and precision
- AlTiN coating for enhanced heat resistance and wear protection
- Increased flute count for improved surface finish
- Designed for profiling and finishing operations
- Steel
- Stainless Steel
- Iron
- Precision profiling
- Finishing applications
- High-speed CNC machining
Piece Count: 1
Material: Solid Carbide
Tool Type: 4-Flute End Mill
End Style: Corner Radius
Helix Angle: 30°
Color: Dark Gray
Cut Diameter (in): 0.3125
LOC (in): 0.8125
Shank Diameter (in): 0.3125
OAL (in): 2.5
Corner Radius (mm): 0.045
No. of Flutes: 4
Coating: AlTiN
Coating: AlTiN {Color: Dark Grey} Hardness (HV): 3500 | Max Working Temperature: 1300°F | High Performance
Common Uses: Steel & Copper
