EMSC 3/32 2FSEDM 90° AlTiN 1/8
Single end· Regular length for general-purpose milling.
90° 2-Flute Drill Mill for Chamfering, Spotting, and Light Milling

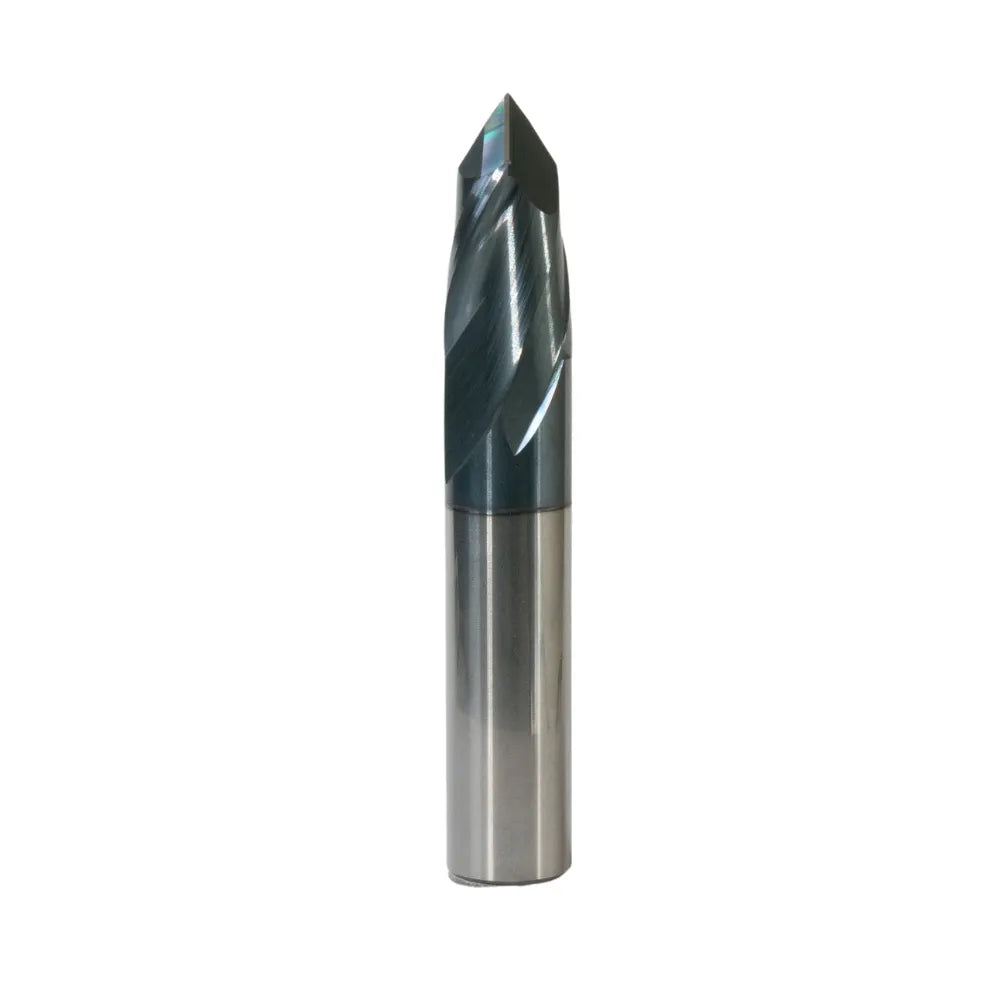

This 2-flute single end drill mill (FSEDM) with a 90° included angle is designed for chamfering, spot drilling, and light milling operations. The drill mill geometry allows both axial and lateral cutting, providing versatility in profiling and edge preparation applications. The AlTiN coating enhances heat resistance and wear protection, extending tool life in higher-speed machining environments. Manufactured from solid carbide, it ensures rigidity and consistent performance across multiple operations.
- 3/32" diameter, 90° included angle
- 2 Flute Single End configuration
- AlTiN coating improves wear resistance in high-speed machining
- Designed for clean chamfers and edge finishing
- 1-1/2" overall length for improved control
- General purpose milling
Piece Count: 1
Cut Diameter (in): 3/32
LOC (in): 0.375
Shank Diameter (in): 0.125
OAL (in): 1.5
No. of Flutes: 2
Coating: AlTiN
Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance
Couldn't load pickup availability
AlTiN
Hardness: 3,500 HV
Max Operating Temp: 1,300°F
High Performance
Primary Applications: Steel & Copper
