EMSC 1/2 x 1/2 SQ 5FSES ADDER AlCrN 5/8 x 2-1/2

  • EMSC 1/2 x 1/2 SQ 5FSES ADDER AlCrN 5/8 x 2-1/2
1 1
$197.82 USD
$197.82 USD
Sale Sold Out
Shipping calculated at checkout | FREE Shipping $25+
Reach vs. Rigidity Select the shortest length that clears your part walls to maximize tool life and feed rates.
Stub
2.5" OAL · 0.625" LOC Regular
3.0" OAL · 1.25" LOC
SKU: 18935  | End Mill •  Cut Diameter 0.5" •  LOC 0.625" •  Shank 0.5" •  AlCrN

Single end· Stub length — maximum rigidity for shallow, precise work.

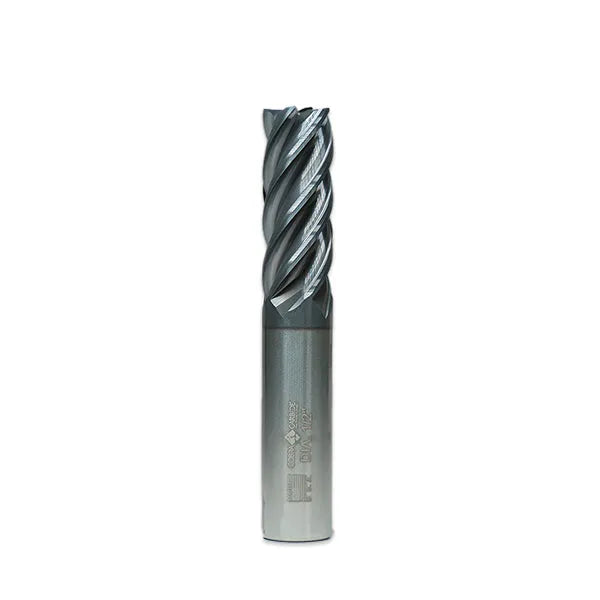

Solid Carbide ADDER 5-Flute Square End Mill – Flute Single End Stub

Stub-length design maximizes rigidity for aggressive yet controlled machining.

  • 5 flutes for excellent finish
  • Square end geometry
  • FSES stub length for maximum stability
  • AlCrN coating for heat resistance
  • Solid carbide body
  • Steel
  • Stainless steel
  • Precision milling
  • Short-reach operations
  • CNC machining

Piece Count: 1
Tool Type: Adder End Mill
End Style: Square End
Color: Silver Gray
Cut Diameter (in): 0.5
LOC (in): 0.625
Shank Diameter (in): 0.5
OAL (in): 2.5
No. of Flutes: 5
Coating: AlCrN

Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance

View full details
Specifications
Tool Type: End Mill
Cut Ø: 0.5" (12.7 mm)
Shank Ø: 0.5" (12.7 mm)
LOC: 0.625" (15.88 mm)
OAL: 2.5" (63.5 mm)
Flutes: 5
Coating

AlCrN

Hardness: 3,200 HV

Max Operating Temp: Up to 2,012°F

Friction Coefficient: ~0.4

Primary Applications: Cast iron, stainless steel, and abrasive materials requiring superior thermal shock resistance and high oxidation stability

The high aluminum content forms a protective aluminum oxide shield at elevated cutting temperatures, protecting the carbide substrate.

Ideal Materials
  • Steel
  • Stainless Steel
  • Hardened Steel
  • Cast Iron
  • Aluminum
  • Titanium
  • Nickel/Inconel
  • Non-Ferrous
  • Composites
