EMSC 1/16 2FDES Ball AlTIN 1/8 x 1-1/2
EMSC 1/16 2FDES Ball AlTIN 1/8 x 1-1/2
Made from premium solid carbide for durability and precision.
Features 2 flutes for effective chip evacuation in softer materials.
Double-End Heat-Resistant Contouring with Efficient Chip Control

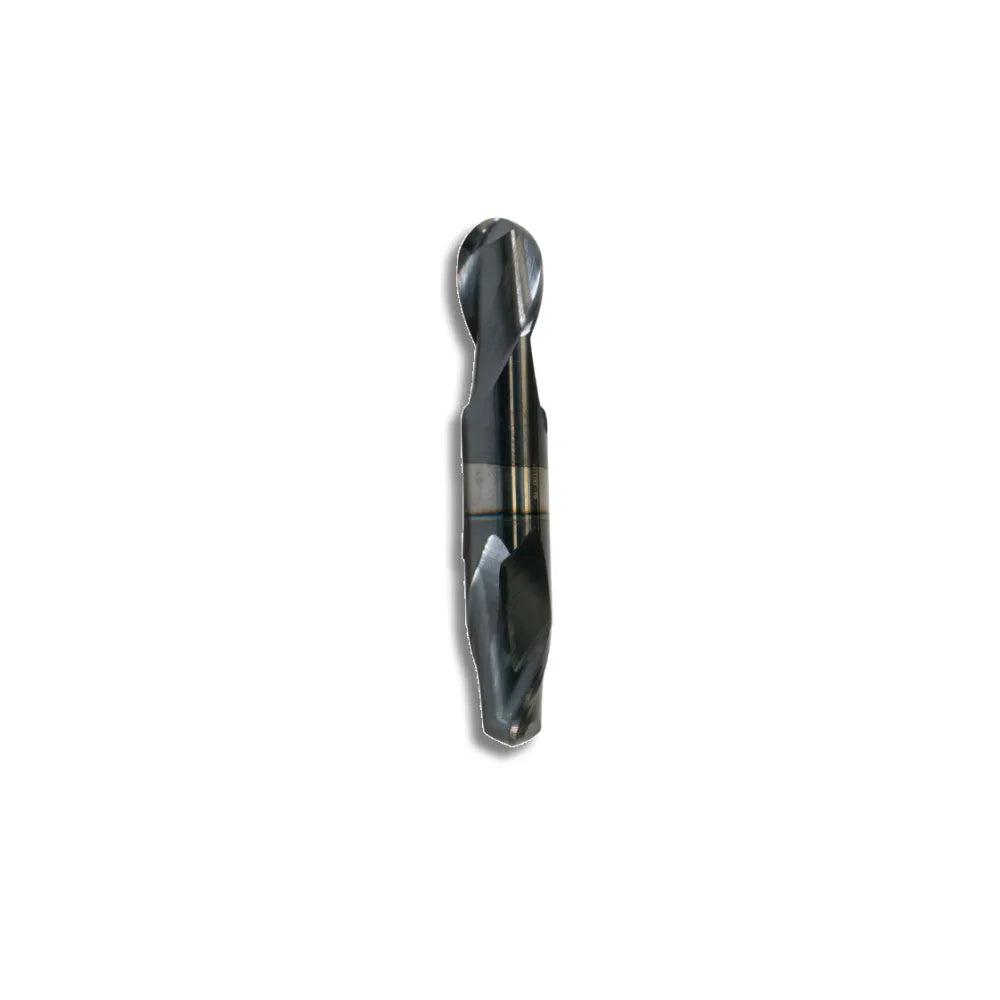

This EMSC 2-flute double end standard (2FDES) ball end mill is constructed from solid carbide and coated with AlTiN (Aluminum Titanium Nitride) for superior heat resistance, wear protection, and extended tool life in demanding CNC machining environments. The ball nose geometry enables smooth 3D contouring, radius blending, and precision surface finishing. The double-end configuration provides two usable cutting ends, maximizing productivity and reducing tool change-over time. The 2-flute design promotes efficient chip evacuation and stable cutting action, making this tool suitable for slotting, profiling, and light finishing passes.
- 2 flute double end standard (2FDES) design for extended productivity
- Ball nose geometry for 3D contouring and smooth radius generation
- Solid carbide construction for rigidity and dimensional accuracy
- AlTiN coating for enhanced heat resistance and longer tool life
- Efficient chip evacuation for slotting and profiling
- Designed for finish and light profiling applications
- Steel
- Stainless Steel
- Iron
- 3D contouring and surface finishing
- Precision profiling and slotting
- Light-duty CNC milling
Piece Count: 1
Material: Solid Carbide
Tool Type: 2-Flute Double End
End Style: Ball Nose End
Helix Angle: 30
Color: Dark Gray
Cut Diameter (in): 2026-01-16 00:00:00
LOC (in): 0.125
Shank Diameter (in): 0.125
OAL (in): 1.5
No. of Flutes: 2
Coating: AlTiN
