CNMG 321 TiN Trackers (10 Pack)
CNMG 321 TiN Trackers (10 Pack)
Professional Turning Insert for Roughing and Finishing

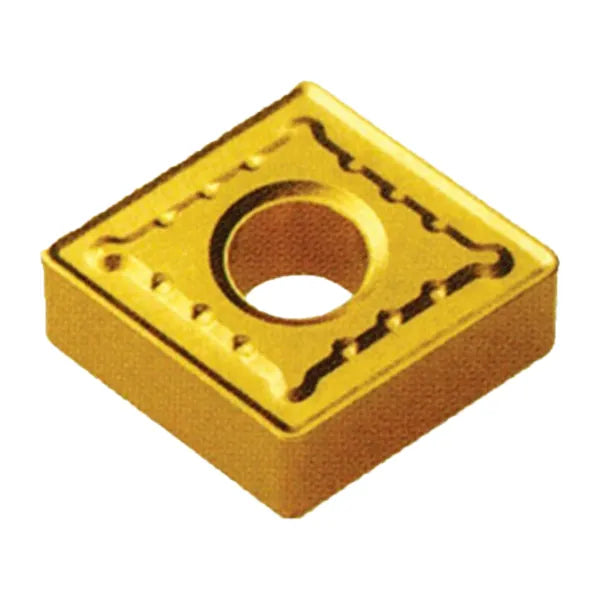

The CNMG carbide turning insert is built for high-performance machining in demanding applications. Featuring an 80° diamond shape with a negative rake design, it offers exceptional edge strength and stability, making it ideal for heavy cuts, interrupted machining, and high-feed operations. Its double-sided geometry provides multiple cutting edges, maximizing tool life and cost efficiency. Manufactured from premium-grade carbide and compatible with a wide range of chipbreaker styles, the CNMG insert ensures reliable chip control and consistent performance when machining steel, stainless steel, cast iron, and other tough materials.
- Proportionate to the size and the nose radius
- Combo pin and clamp insert
- 0º relief angle
- Double sided for medium to heavy cuts
- 80º diamond with chipbreaker
- Feed range .007 to .028 IPR
- For roughing, semi-finishing, and finishing
- For medium to heavy cuts
Piece Count: 10
Material: Solid Carbide
Tool Type: Turning Insert
Corner Radius: 1/64
Coating: Uncoated
Insert Style: CNMG 321
ISO Designation: CNMG 09 03 04
Inscribed Circle: 46024
Width: 46030
Thru Hole: 0.15
Coating: TiN {Color: Gold} Hardness (HV): 2400 | Max Working Temperature: 1100°F | General Purpose
Common Uses: Steel, Cast Iron, Aluminum, Bronze, Copper, Forming
