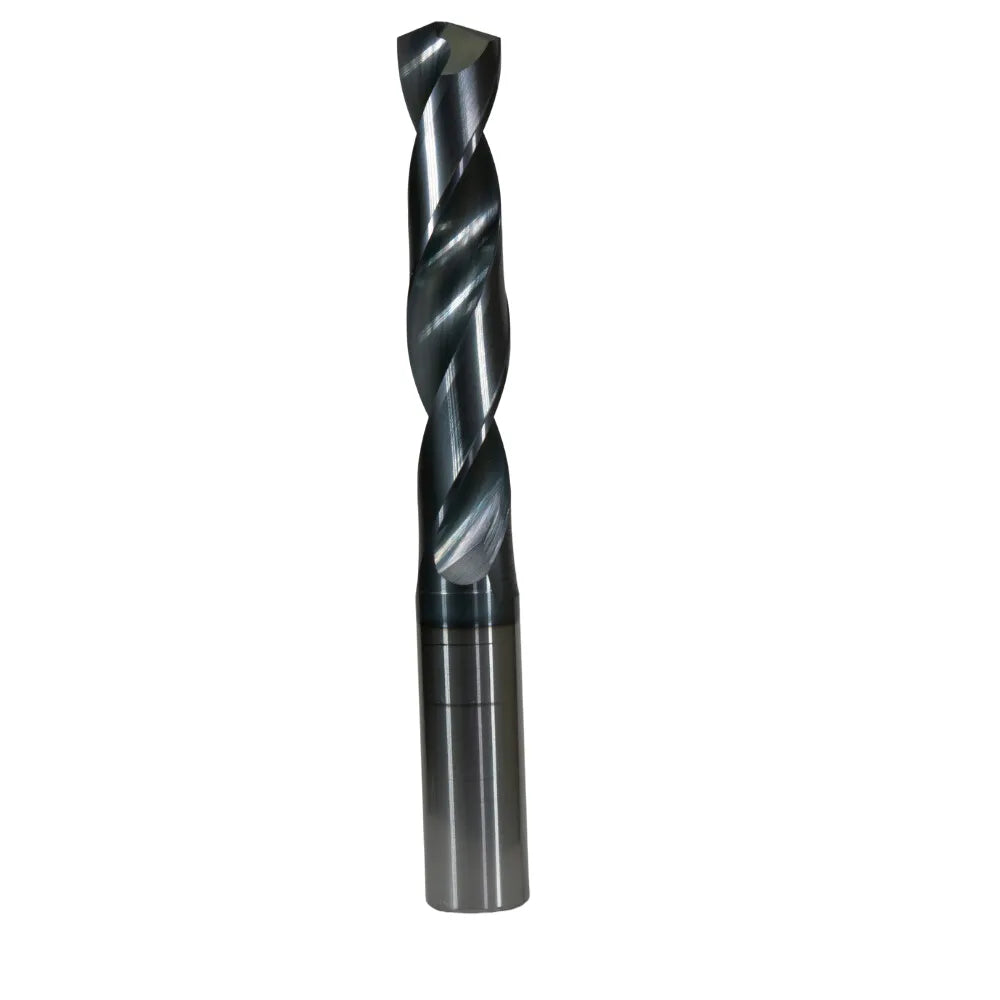

3/16 SC 8xD Non-Coolant Drill TiAlN 2-1/4 x 4

1 1
$136.31 USD
$136.31 USD
Sale Sold Out | MORE SOON!
Shipping calculated at checkout | FREE Shipping $25+
SKU: 56702  | Drill •  Shank 6.0" •  Sub-Micron Grain Carbide •  TiAlN

High Performance Non-Coolant Drill

This drill is engineered for high-speed applications, it features a durable, wear-resistant coating and optimized flute geometry for efficient chip evacuation and extended tool life. Ideal for a wide range of materials, this drill ensures clean entry, accurate hole dimensions, and consistent results in demanding production environments.

  • 140° point angle
  • Optimal geometry
  • Made with premium sub-micron grain carbide
  • 30° helix angle
  • Best for steel, stainless steel, and hardened steel
  • Best for shallow holes
  • General-purpose machining
  • For machines without high-pressure coolant capabilities

Piece Count: 1
Material: Sub-Micron Grain Carbide
Tool Type: 8XD Non-Coolant Drill
Helix Angle: 30
Included Angle: 140
Color: Dark Gray
Shank Diameter (mm): 6
OAL (in): 4
Flute Length (in): 2.25
Decimal: 0.1875
Imperial Size (in): 0.1875
Metric Size: 4.76
Coating: TiAlN

If you can't take the heat, stay out of our aerospace!
TOLERANCE: ±0.0001 | The highest achievable standard on earth.

View full details
Specifications
Tool Type: Drill
Material: Sub-Micron Grain Carbide
Shank Ø: 6.0 mm
OAL: 4.0 in
Helix Angle: 30.0°
Flute Length: 2.25 in
Coating

TiAlN

Hardness: 3,500 HV

Max Operating Temp: 1,300°F

High Performance

Primary Applications: Steel & Copper

Ideal Materials
  • Steel
  • Stainless Steel
  • Hardened Steel
  • Cast Iron
  • Aluminum
  • Titanium
  • Nickel/Inconel
  • Non-Ferrous
  • Composites
