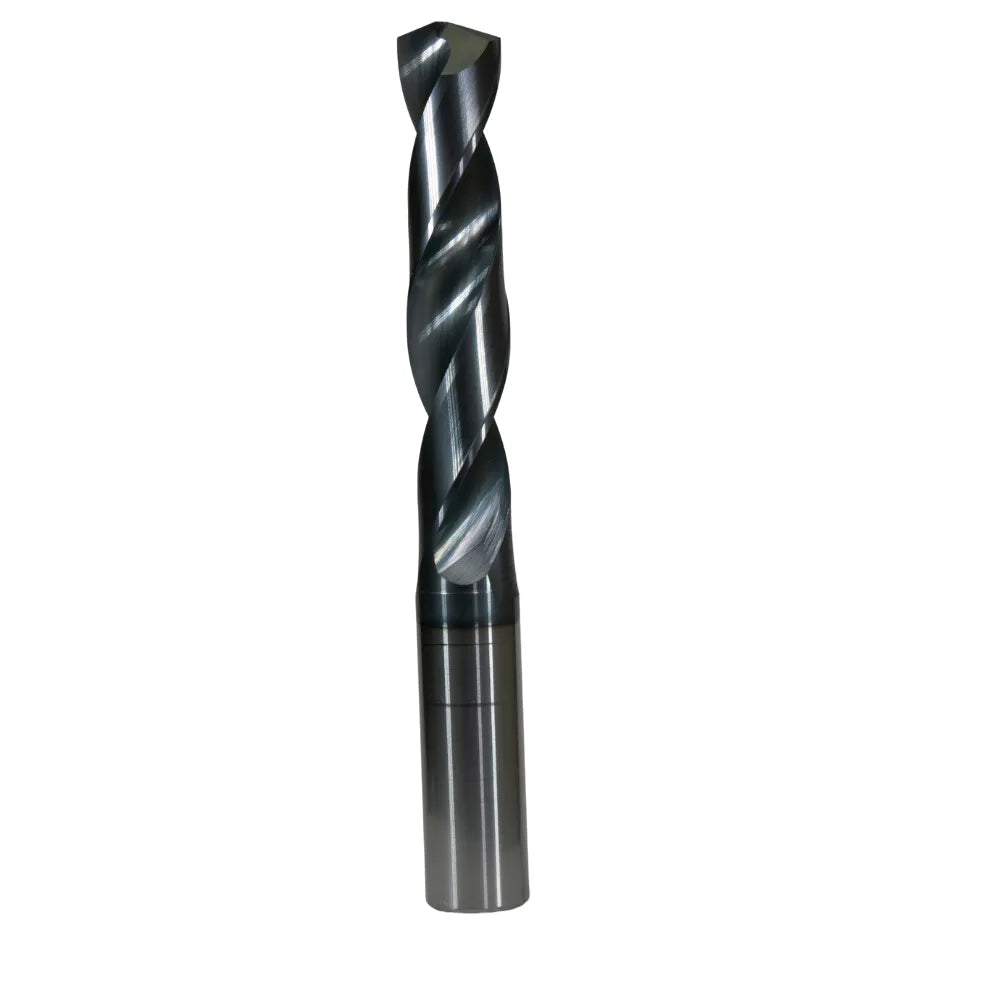

20.00mm SC 5xD Non-Coolant Drill TiAlN 101mm x 153mm

1 1
$636.72 USD
$636.72 USD
Sale Sold Out | MORE SOON!
Shipping calculated at checkout | FREE Shipping $25+
SKU: 56798  | Drill •  Cut Diameter 20.0" •  Sub-Micron Grain Carbide •  TiAlN

High Performance Non-Coolant Drill

This drill is engineered for high-speed applications, it features a durable, wear-resistant coating and optimized flute geometry for efficient chip evacuation and extended tool life. Ideal for a wide range of materials, this drill ensures clean entry, accurate hole dimensions, and consistent results in demanding production environments.

  • 140° point angle
  • Optimal geometry
  • Made with premium sub-micron grain carbide
  • 30° helix angle
  • Best for steel, stainless steel, and hardened steel
  • Best for shallow holes
  • General-purpose machining
  • For machines without high-pressure coolant capabilities

Piece Count: 1
Material: Sub-Micron Grain Carbide
Tool Type: 5XD Non-Coolant Drill
Cut Diameter (mm): 20
Coating: TiAlN

If you can't take the heat, stay out of our aerospace!
TOLERANCE: ±0.0001 | The highest achievable standard on earth.

View full details
Specifications
Tool Type: Drill
Material: Sub-Micron Grain Carbide
Cut Ø: 20.0 mm
Coating

TiAlN

Hardness: 3,500 HV

Max Operating Temp: 1,300°F

High Performance

Primary Applications: Steel & Copper

Ideal Materials
  • Steel
  • Stainless Steel
  • Hardened Steel
  • Cast Iron
  • Aluminum
  • Titanium
  • Nickel/Inconel
  • Non-Ferrous
  • Composites
