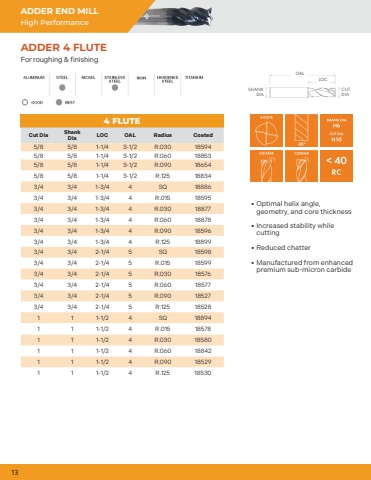

13For roughing & finishingADDER 4 FLUTEADDER END MILLHigh Performance4 FLUTECut Dia Shank Dia LOC OAL Radius Coated5/8 5/8 1-1/4 3-1/2 R.030 185945/8 5/8 1-1/4 3-1/2 R.060 188535/8 5/8 1-1/4 3-1/2 R.090 186545/8 5/8 1-1/4 3-1/2 R.125 188343/4 3/4 1-3/4 4 SQ 188863/4 3/4 1-3/4 4 R.015 185953/4 3/4 1-3/4 4 R.030 188773/4 3/4 1-3/4 4 R.060 188783/4 3/4 1-3/4 4 R.090 185963/4 3/4 1-3/4 4 R.125 188993/4 3/4 2-1/4 5 SQ 185983/4 3/4 2-1/4 5 R.015 185993/4 3/4 2-1/4 5 R.030 185763/4 3/4 2-1/4 5 R.060 185773/4 3/4 2-1/4 5 R.090 185273/4 3/4 2-1/4 5 R.125 185281 1 1-1/2 4 SQ 188941 1 1-1/2 4 R.015 18578%u2022 Optimal helix angle, geometry, and core thickness%u2022 Increased stability while cutting%u2022 Reduced chatter %u2022 Manufactured from enhanced premium sub-micron carbideOALLOCSHANKDIACUTDIA1 1 1-1/2 4 R.030 185801 1 1-1/2 4 R.060 188421 1 1-1/2 4 R.090 185291 1 1-1/2 4 R.125 18530
