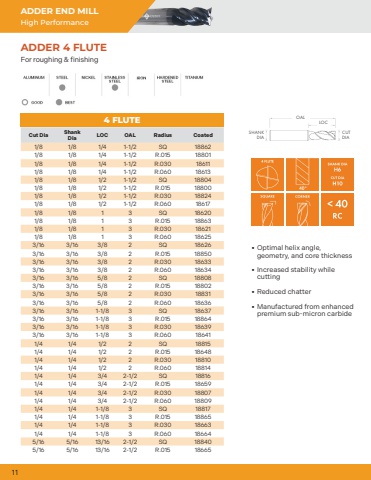

11ADDER END MILLHigh PerformanceFor roughing & finishing4 FLUTECut Dia Shank Dia LOC OAL Radius Coated1/8 1/8 1/4 1-1/2 SQ 188621/8 1/8 1/4 1-1/2 R.015 188011/8 1/8 1/4 1-1/2 R.030 186111/8 1/8 1/4 1-1/2 R.060 186131/8 1/8 1/2 1-1/2 SQ 188041/8 1/8 1/2 1-1/2 R.015 188001/8 1/8 1/2 1-1/2 R.030 188241/8 1/8 1/2 1-1/2 R.060 186171/8 1/8 1 3 SQ 186201/8 1/8 1 3 R.015 188631/8 1/8 1 3 R.030 186211/8 1/8 1 3 R.060 186253/16 3/16 3/8 2 SQ 186263/16 3/16 3/8 2 R.015 188503/16 3/16 3/8 2 R.030 186333/16 3/16 3/8 2 R.060 186343/16 3/16 5/8 2 SQ 188083/16 3/16 5/8 2 R.015 188023/16 3/16 5/8 2 R.030 188313/16 3/16 5/8 2 R.060 186363/16 3/16 1-1/8 3 SQ 186373/16 3/16 1-1/8 3 R.015 188643/16 3/16 1-1/8 3 R.030 186393/16 3/16 1-1/8 3 R.060 186411/4 1/4 1/2 2 SQ 188151/4 1/4 1/2 2 R.015 186481/4 1/4 1/2 2 R.030 188101/4 1/4 1/2 2 R.060 188141/4 1/4 3/4 2-1/2 SQ 188161/4 1/4 3/4 2-1/2 R.015 186591/4 1/4 3/4 2-1/2 R.030 188071/4 1/4 3/4 2-1/2 R.060 188091/4 1/4 1-1/8 3 SQ 188171/4 1/4 1-1/8 3 R.015 188651/4 1/4 1-1/8 3 R.030 186631/4 1/4 1-1/8 3 R.060 186645/16 5/16 13/16 2-1/2 SQ 188405/16 5/16 13/16 2-1/2 R.015 18665%u2022 Optimal helix angle, geometry, and core thickness%u2022 Increased stability while cutting%u2022 Reduced chatter %u2022 Manufactured from enhanced premium sub-micron carbideADDER 4 FLUTEOALLOCSHANKDIACUTDIA
