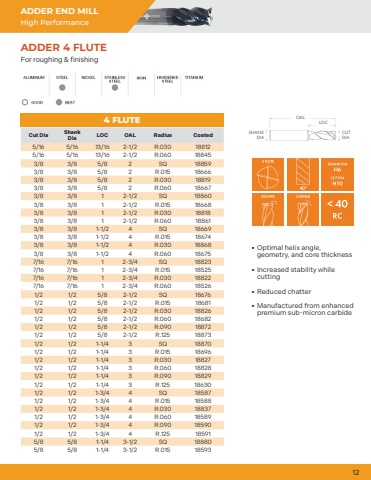

12ADDER END MILLHigh PerformanceFor roughing & finishing%u2022 Optimal helix angle, geometry, and core thickness%u2022 Increased stability while cutting%u2022 Reduced chatter %u2022 Manufactured from enhanced premium sub-micron carbide4 FLUTECut Dia Shank Dia LOC OAL Radius Coated5/16 5/16 13/16 2-1/2 R.030 188125/16 5/16 13/16 2-1/2 R.060 188453/8 3/8 5/8 2 SQ 188593/8 3/8 5/8 2 R.015 186663/8 3/8 5/8 2 R.030 188193/8 3/8 5/8 2 R.060 186673/8 3/8 1 2-1/2 SQ 188603/8 3/8 1 2-1/2 R.015 186683/8 3/8 1 2-1/2 R.030 188183/8 3/8 1 2-1/2 R.060 188613/8 3/8 1-1/2 4 SQ 186693/8 3/8 1-1/2 4 R.015 186743/8 3/8 1-1/2 4 R.030 188683/8 3/8 1-1/2 4 R.060 186757/16 7/16 1 2-3/4 SQ 188237/16 7/16 1 2-3/4 R.015 185257/16 7/16 1 2-3/4 R.030 188227/16 7/16 1 2-3/4 R.060 185261/2 1/2 5/8 2-1/2 SQ 186761/2 1/2 5/8 2-1/2 R.015 186811/2 1/2 5/8 2-1/2 R.030 188261/2 1/2 5/8 2-1/2 R.060 186821/2 1/2 5/8 2-1/2 R.090 188721/2 1/2 5/8 2-1/2 R.125 188731/2 1/2 1-1/4 3 SQ 188701/2 1/2 1-1/4 3 R.015 186961/2 1/2 1-1/4 3 R.030 188271/2 1/2 1-1/4 3 R.060 188281/2 1/2 1-1/4 3 R.090 188291/2 1/2 1-1/4 3 R.125 186301/2 1/2 1-3/4 4 SQ 185871/2 1/2 1-3/4 4 R.015 185881/2 1/2 1-3/4 4 R.030 188371/2 1/2 1-3/4 4 R.060 185891/2 1/2 1-3/4 4 R.090 185901/2 1/2 1-3/4 4 R.125 185915/8 5/8 1-1/4 3-1/2 SQ 188805/8 5/8 1-1/4 3-1/2 R.015 18593ADDER 4 FLUTEOALLOCSHANKDIACUTDIA
