EMSC 7/64 x 1/8 2FSES AlTiN 7/32 x 1-1/2
EMSC 7/64 x 1/8 2FSES AlTiN 7/32 x 1-1/2
Made from premium solid carbide for durability and precision.
Features 2 flutes for effective chip evacuation in softer materials.
Versatile Two-Flute Milling with Flexible Coating Options

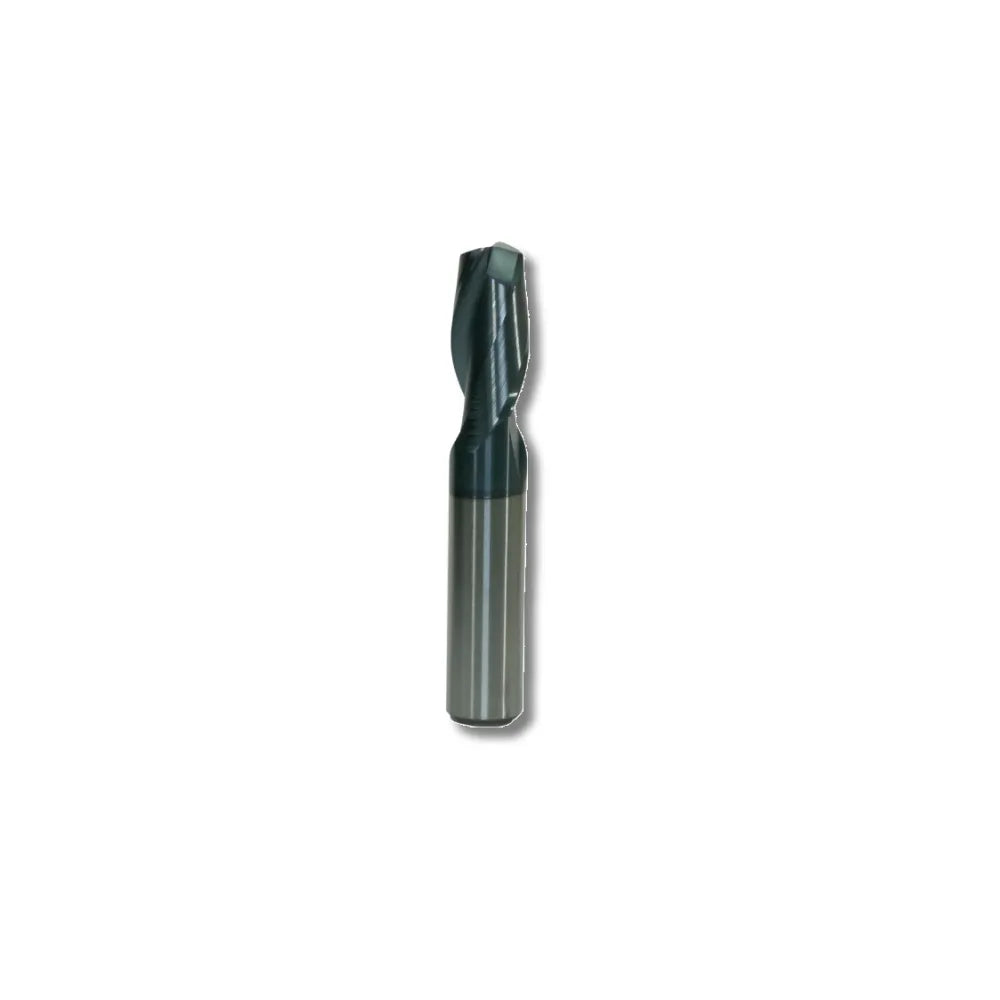

The EMSC 2FS (2 Flute Single End) end mill is designed for general-purpose slotting, profiling, and side milling operations in CNC machining applications. The 2-flute configuration provides efficient chip evacuation, making it well suited for deeper slotting and softer materials while maintaining stable cutting performance. Manufactured from solid carbide, this tool delivers rigidity and dimensional accuracy. Available in Bright, TiN, AlTiN, and other performance coatings to match material type and machining speed requirements.
- 2 flute single end (2FS) design
- Efficient chip evacuation for slotting and profiling
- Solid carbide construction for rigidity and durability
- Available coatings: Bright, TiN, AlTiN, TiCN, and others
- Designed for general-purpose CNC milling
- Balanced cutting geometry for stable performance
- Steel
- Stainless Steel
- Iron
- General-purpose slotting
- Profiling and side milling
- CNC production machining
Piece Count: 1
Material: Solid Carbide
End Style: Square End
Color: Dark Gray
Cut Diameter (in): 7/64
LOC (in): 0.21875
Shank Diameter (in): 0.125
OAL (in): 1.5
No. of Flutes: 2
Coating: AlTiN
Coating: AlTiN {Color: Dark Grey} Hardness (HV): 3500 | Max Working Temperature: 1300°F | High Performance
Common Uses: Steel & Copper
