EMSC 6mm 4FSER Ball AlTiN 19 x 50mm

  • EMSC 6mm 4FSER Ball AlTiN 19 x 50mm
1 1
$54.22 USD
$54.22 USD
Sale Sold Out
Shipping calculated at checkout | FREE Shipping $25+
Reach vs. Rigidity Select the shortest length that clears your part walls to maximize tool life and feed rates.
Regular
1.9685" OAL · 0.748" LOC Long
2.9528" OAL · 0.9843" LOC
SKU: 25526  | End Mill •  Cut Diameter 0.2362" •  LOC 0.748" •  Shank 0.2362" •  Sub-Micron Grain Carbide •  AlTiN

Single end· Regular length for general-purpose milling.

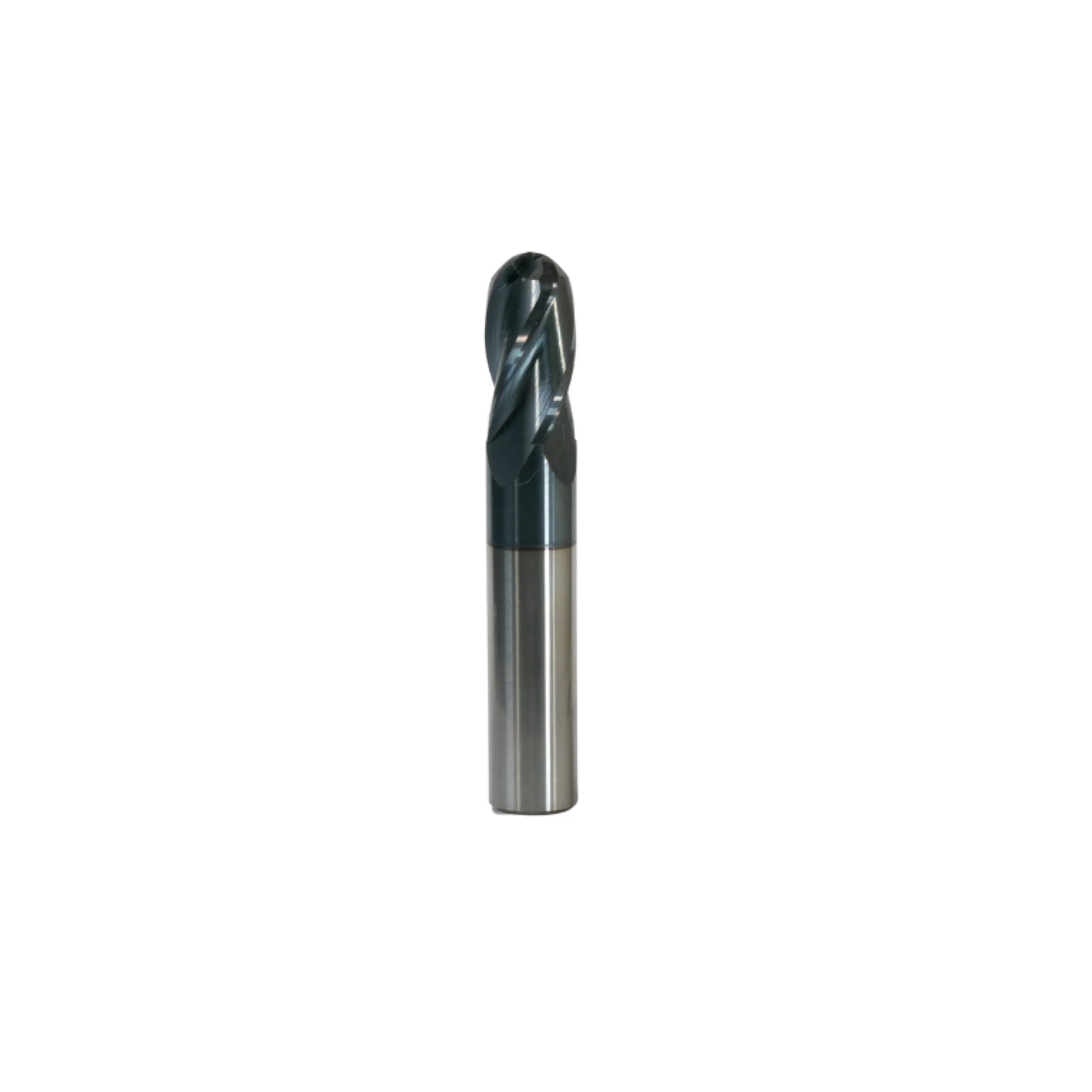

4-Flute Ball End Mill

This 4-Flute Ball End Mill is designed for smooth 3D contouring and precision profiling in aluminum and non-ferrous materials. Its two-flute geometry provides excellent chip evacuation and reduced heat buildup, delivering clean surface finishes and reliable performance in CNC machining applications.

  • Manufactured from premium sub-micron grain carbide
  • Center cut geomertry
  • 30° helix angle
  • Ball nose cutting tip allows it to produce smooth, curved services
  • Best for aluminum, steel, iron
  • For slotting, profiling, and plunging

Piece Count: 1
Material: Sub-Micron Grain Carbide
End Style: Ball Nose End
Color: Dark Gray
Cut Diameter (mm): 6
Shank Diameter (in): 6
No. of Flutes: 4
Coating: AlTiN

If you can't take the heat, stay out of our aerospace!
TOLERANCE: ±0.0001 | The highest achievable standard on earth.

View full details
Specifications
Tool Type: End Mill
Material: Sub-Micron Grain Carbide
Cut Ø: 6 mm (0.2362")
Shank Ø: 6 mm (0.2362")
LOC: 19 mm (0.748")
OAL: 50 mm (1.9685")
Flutes: 4
Coating

AlTiN

Hardness: 3,500 HV

Max Operating Temp: 1,300°F

High Performance

Primary Applications: Steel & Copper

Ideal Materials
  • Steel
  • Stainless Steel
  • Hardened Steel
  • Cast Iron
  • Aluminum
  • Titanium
  • Nickel/Inconel
  • Non-Ferrous
  • Composites
