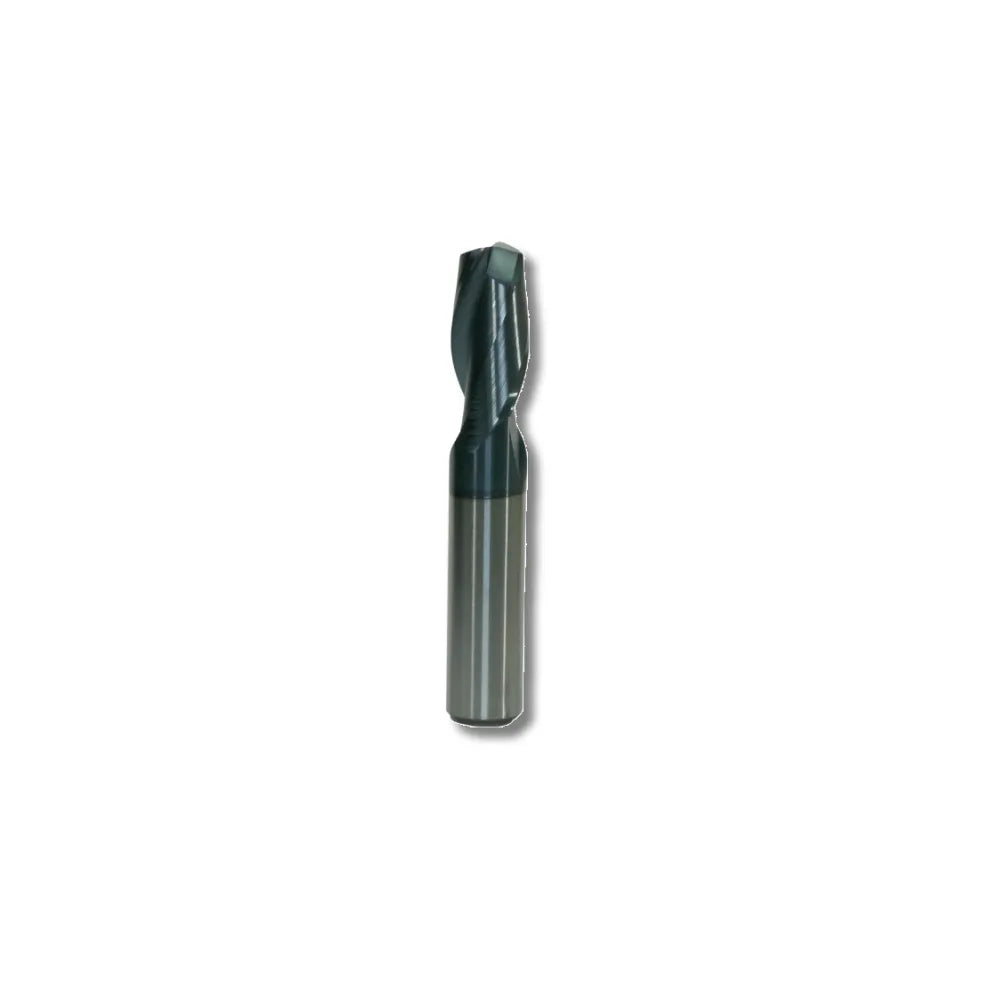

EMSC 5mm 2FSEL AlTiN 25 x 75mm
EMSC 5mm 2FSEL AlTiN 25 x 75mm
Made from premium solid carbide for durability and precision.
Single end, SEL.
Features 2 flutes for effective chip evacuation in softer materials.
2-Flute Metric End Mill for Slotting, Profiling, and Plunging
The 2-flute metric end mill is designed for slotting, profiling, and side milling in CNC machining applications. The 2-flute configuration promotes efficient chip evacuation and stable cutting performance, particularly in deeper slotting operations. Manufactured from premium sub-micron grain carbide, this tool provides rigidity and dimensional accuracy.
- Center cut geometry
- 30° helix design for smooth cutting action and reduced vibration
- Manufactured from premium sub-micron grain carbide
- Designed for increased metal removal
- Best for aluminum, steel, and iron
- Slotting, profiling, and plunging
- Material removal
- Semi-finishing
Piece Count: 1
Material: Sub-Micron Grain Carbide
Tool Type: 2-Flute Metric End Mill
End Style: Square End
Helix Angle: 30
Color: Dark Gray
Cut Diameter (mm): 5
LOC (mm): 25
Shank Diameter (mm): 5
OAL (mm): 75
No. of Flutes: 2
Coating: AlTiN
Coating: AlTiN {Color: Dark Grey} Hardness (HV): 3500 | Max Working Temperature: 1300°F | High Performance
Common Uses: Steel & Copper
