EMSC 3/16 x 3/16 (.015) 5FSER ADDER AlCrN 5/8 X 2

  • EMSC 3/16 x 3/16 (.015) 5FSER ADDER AlCrN 5/8 X 2
1 1
$73.64 USD
$73.64 USD
Sale Sold Out
Shipping calculated at checkout | FREE Shipping $25+
SKU: 18902  | End Mill •  Cut Diameter 0.1875" •  LOC 0.625" •  Shank 0.1875" •  AlCrN

Single end· Regular length for general-purpose milling.

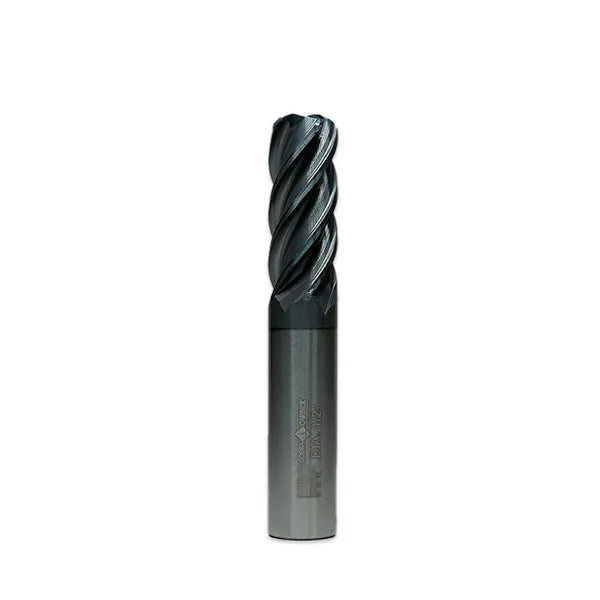

Solid Carbide ADDER 5-Flute Corner Radius End Mill – Flute Single End Regular

This compact ADDER end mill provides excellent surface finish and control in small-diameter applications.

  • 5 flutes for smooth cutting action
  • Flute Single End Regular (FSER)
  • .015" corner radius for reduced edge wear
  • AlCrN coating for heat resistance
  • Solid carbide body
  • Best for Steel
  • Best for Stainless steel
  • Fine profiling
  • Finishing passes
  • CNC precision machining

Piece Count: 1
Material: Solid Carbide
Tool Type: Adder End Mill
End Style: Square End
Cut Diameter (in): 0.1875
LOC (in): 0.625
Shank Diameter (in): 0.1875
OAL (in): 2
Radius: R.015
No. of Flutes: 5
Coating: Coated

Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance

View full details
Specifications
Tool Type: End Mill
Cut Ø: 0.1875" (4.76 mm)
Shank Ø: 0.1875" (4.76 mm)
LOC: 0.625" (15.88 mm)
OAL: 2" (50.8 mm)
Flutes: 5
Corner Radius: 0.015
Coating

AlCrN

Hardness: 3,200 HV

Max Operating Temp: Up to 2,012°F

Friction Coefficient: ~0.4

Primary Applications: Cast iron, stainless steel, and abrasive materials requiring superior thermal shock resistance and high oxidation stability

The high aluminum content forms a protective aluminum oxide shield at elevated cutting temperatures, protecting the carbide substrate.
