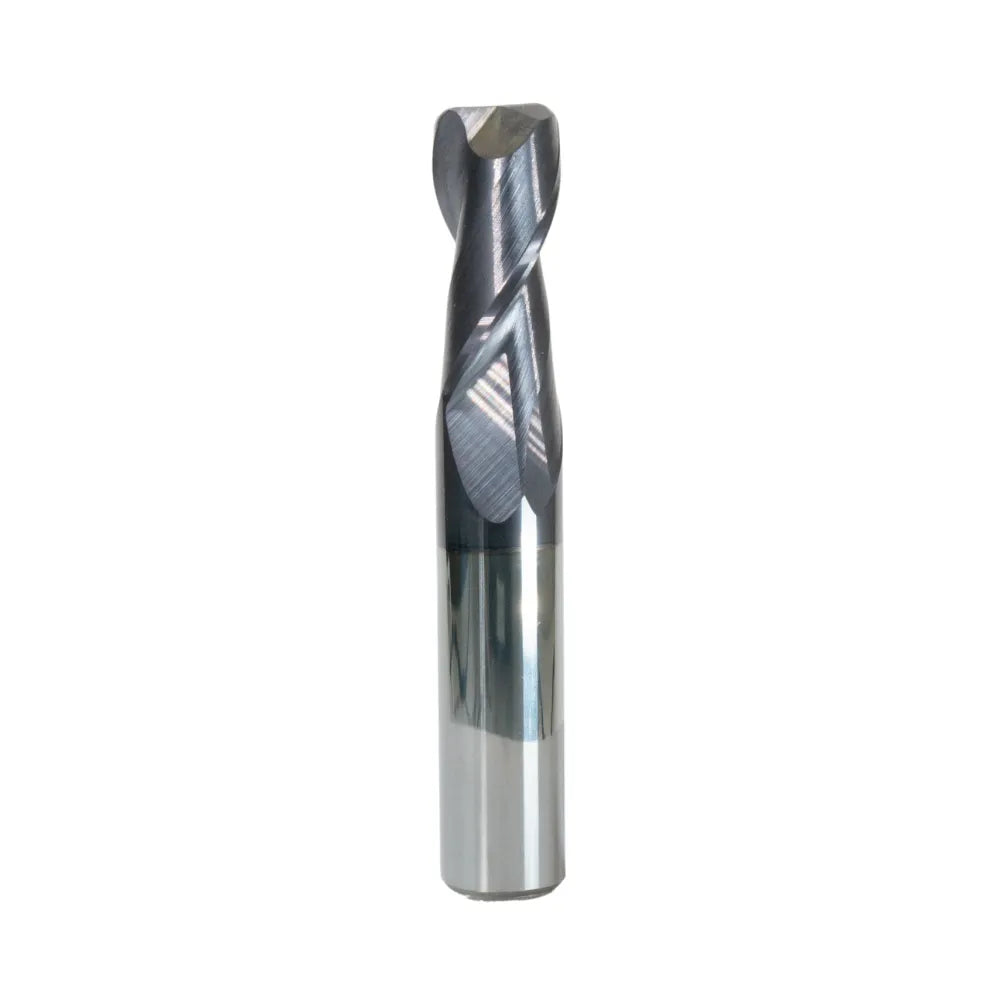

EMSC 3/16 2FSER (.030) AlTiN C.Radius 5/8 x 2
EMSC 3/16 2FSER (.030) AlTiN C.Radius 5/8 x 2
Made from premium solid carbide for durability and precision.
Single end, regular length for general-purpose milling.
Features 2 flutes for effective chip evacuation in softer materials.
Precision Profiling with Extended Tool Life
This EMSC 2 Flute Single End Regular (2FSER) Corner Radius End Mill is manufactured from solid carbide and coated with AlTiN for enhanced heat resistance and wear protection. The corner radius geometry strengthens the cutting edge, reducing chipping and improving surface finish during slotting and profiling operations. The 2-flute design promotes efficient chip evacuation, making it suitable for both light roughing and finishing applications. The AlTiN coating allows higher cutting speeds and extended tool life in steel and stainless steel machining environments.
- 2 flute single end regular (2FSER) design
- Corner radius geometry for improved edge durability
- Solid carbide construction for rigidity and dimensional accuracy
- AlTiN coating for superior heat resistance and wear life
- Efficient chip evacuation for slotting applications
- Designed for profiling and contour milling
- Best for Steel
- Best for Aluminum
- Best for Iron
- Precision slotting
- Profiling and contouring operations
- High-speed CNC machining
Piece Count: 1
Material: Solid Carbide
Tool Type: 2-Flute End Mill
End Style: Corner Radius
Color: Dark Gray
Cut Diameter (in): 0.1875
LOC (in): 0.625
Shank Diameter (in): 0.1875
OAL (in): 2
No. of Flutes: 2
Coating: AlTiN
Coating: AlTiN {Color: Dark Grey} Hardness (HV): 3500 | Max Working Temperature: 1300°F | High Performance
Common Uses: Steel & Copper
