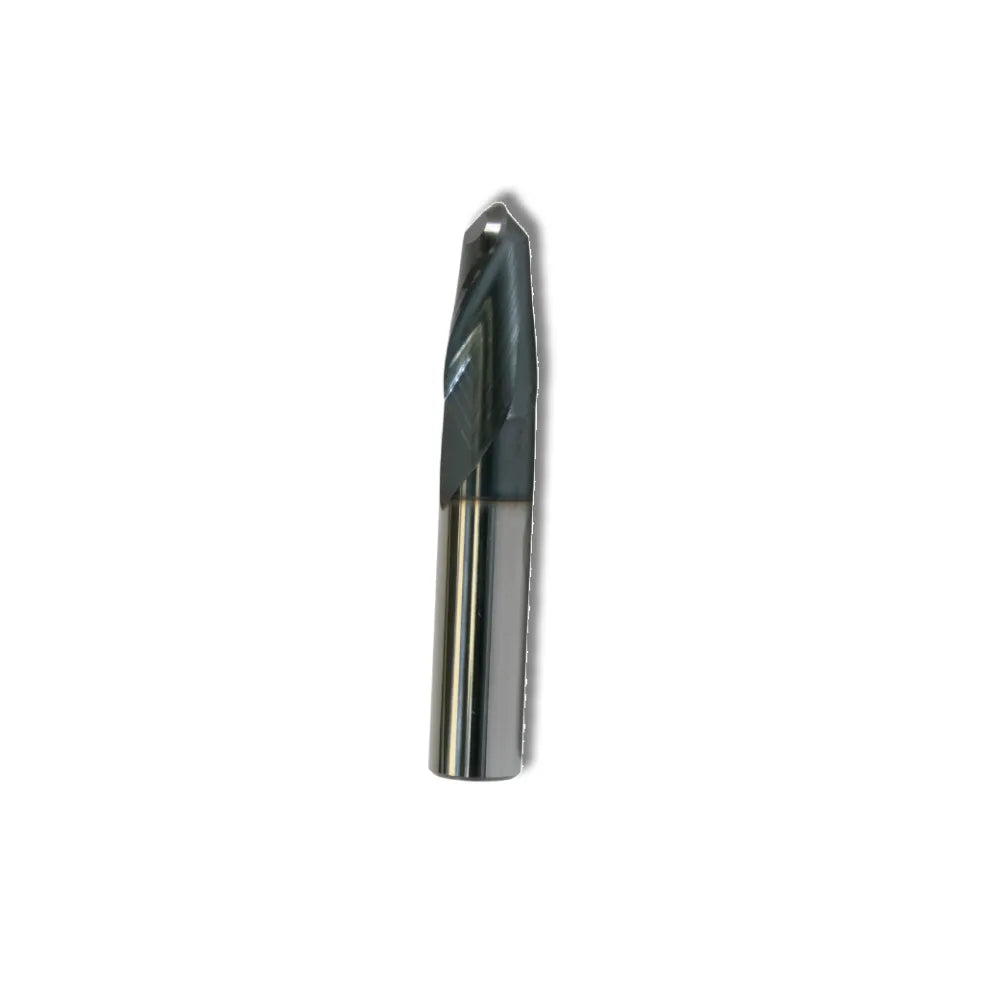

EMSC 2.5mm x 4mm 2FSER Ball TiAlN 9.5 x 50mm
Single end· Regular length for general-purpose milling.
Versatile Two-Flute Milling for Slotting and 3D Contouring
The EMSC 2 Flute end mill is available in both square end and ball nose configurations to support slotting, profiling, and 3D contouring operations. The 2-flute geometry promotes efficient chip evacuation, making it well suited for deeper slots and softer materials while maintaining controlled cutting performance. Manufactured from solid carbide, this tool delivers rigidity and dimensional accuracy in CNC machining environments. Offered in Bright, TiN, TiCN, AlTiN, and other advanced coatings to match application demands and material types.
- 2 flute configuration for efficient chip evacuation
- Available in square end and ball nose geometries
- Solid carbide construction for rigidity and durability
- Coating options: Bright, TiN, TiCN, AlTiN, and others
- Designed for slotting, profiling, and contouring
- Suitable for general-purpose and finish machining
- Steel
- Stainless Steel
- Iron
- Slotting and side milling
- 3D contouring (Ball Nose)
- CNC production machining
Piece Count: 1
Material: Solid Carbide
Tool Type: 2-Flute End Mill
End Style: Ball Nose End
Cut Diameter (mm): 2.5
LOC (mm): 9.5
Shank Diameter (mm): 2.5
OAL (in): 4
No. of Flutes: 2
Coating: TiAlN
Ground to 1/30th of a human hair on 100% virgin carbide is our baseline. Because accuracy and tool life are not just an 'industry standard' at Cobra Carbide. Tool Tolerance
Couldn't load pickup availability
TiAlN
Hardness: 3,500 HV
Max Operating Temp: 1,300°F
High Performance
Primary Applications: Steel & Copper
- Steel
- Stainless Steel
- Hardened Steel
- Cast Iron
- Aluminum
- Titanium
- Nickel/Inconel
- Non-Ferrous
- Composites
