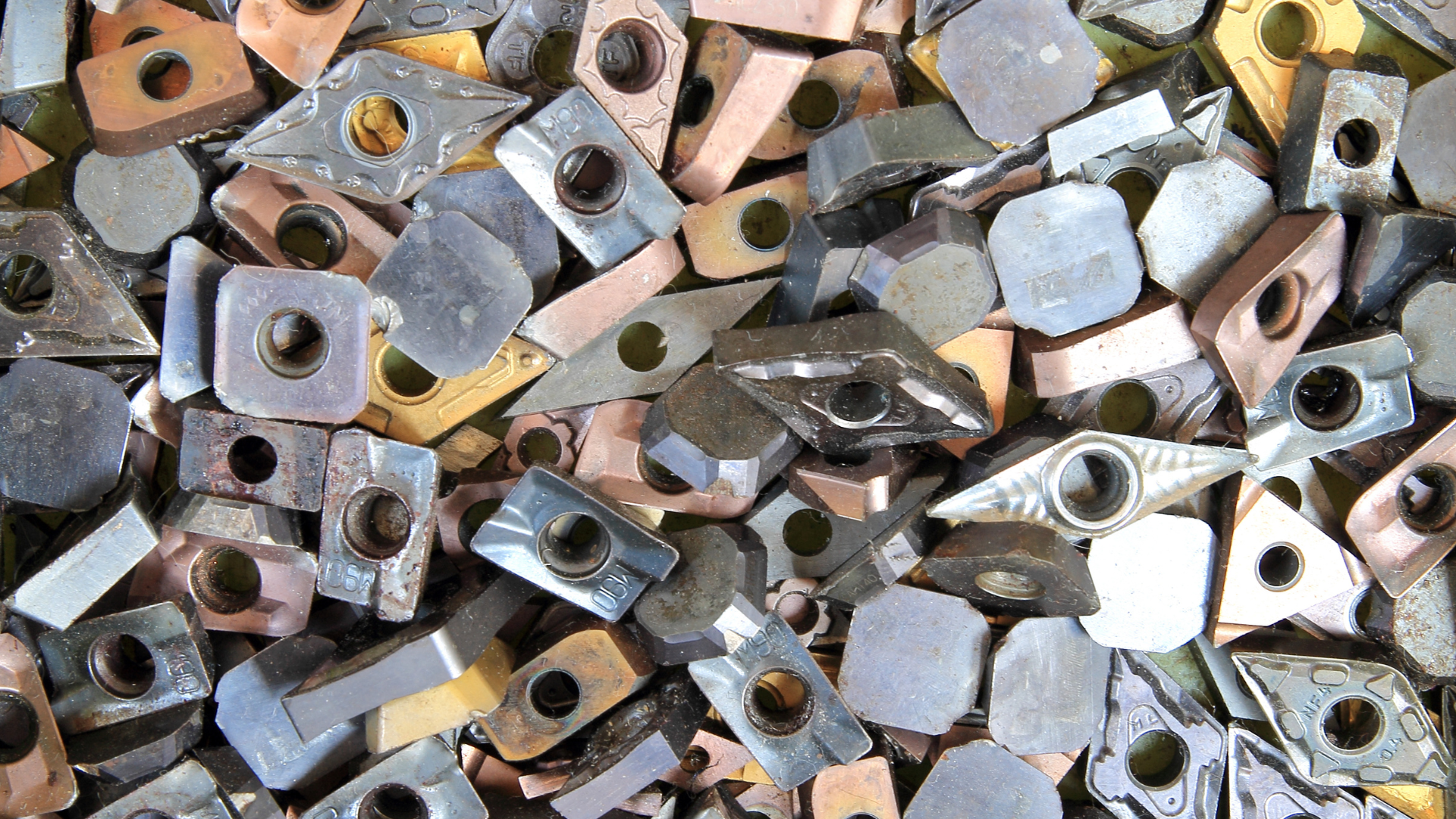

Carbide inserts are essential cutting tools in machining processes, and they are widely used in industries such as automotive, aerospace, and manufacturing. Identifying the correct carbide inserts for your application ensures optimal performance and longevity of your tools.

However, understanding how to identify these inserts can be challenging due to their diverse shapes, sizes, and codes. This guide simplifies the process, equipping you with the knowledge to confidently identify and select the correct carbide insert.

1. Understanding Carbide Insert Geometry

Carbide inserts are replaceable cutting tool components made from a combination of carbide and binding materials. These inserts are designed to withstand high-speed machining, offering excellent wear resistance and extended tool life. They come in various shapes and sizes, tailored for different applications, such as turning, milling, and drilling.

Carbide inserts come in various shapes, sizes, and configurations. Their design, known as geometry, is crucial for their performance. Here’s a simplified breakdown of the key aspects of carbide insert geometry:

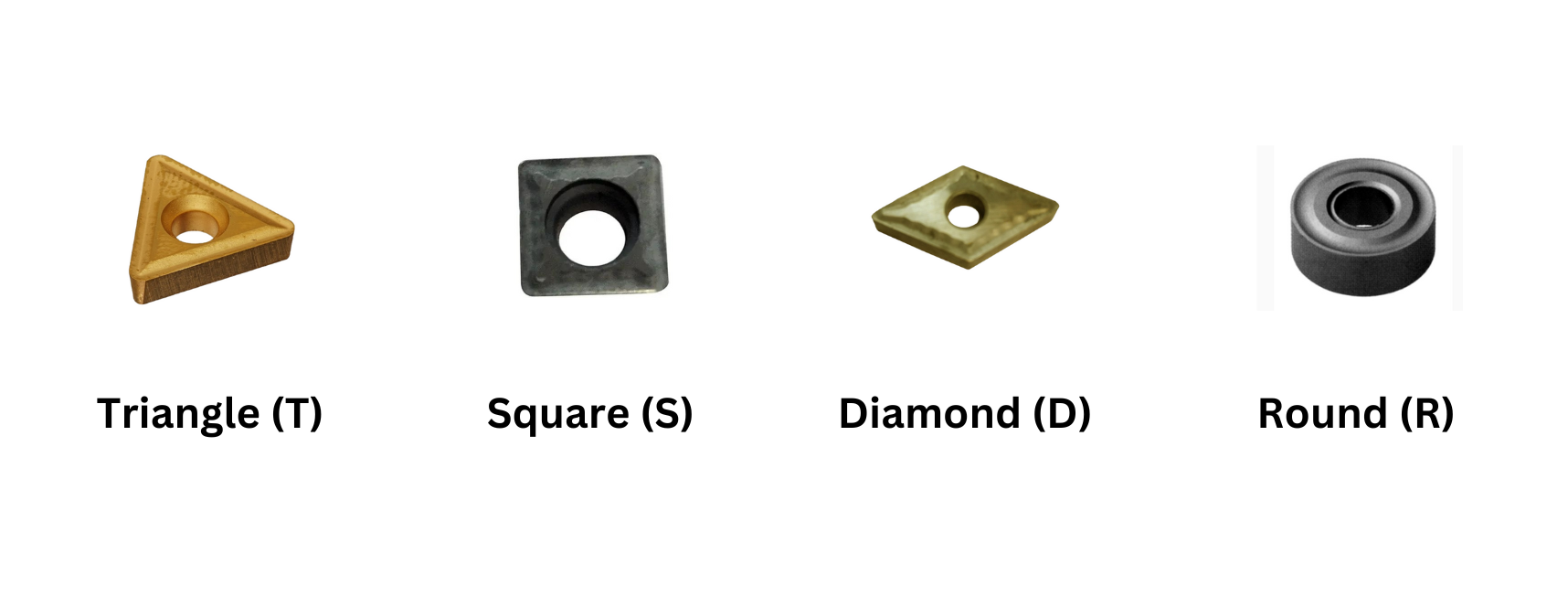

These geometries affect the insert's performance and suitability for specific applications. Common insert shapes include:

• Triangle (T)
• Square (S)
• Diamond (D)
• Round ®

Each shape is suited for specific cutting operations and tool-holding systems. For instance, triangular inserts are ideal for turning and facing operations, while round inserts excel in contouring and finishing.

2. Decoding Carbide Insert Designations

Carbide inserts follow a standardized naming convention defined by organizations like ISO and ANSI. The designation typically consists of a series of letters and numbers representing:

Types of Operations

1. Roughing: Used for heavy cutting with high speeds and depths. It focuses on durability and strength to handle rigid materials.
2. Medium: Suitable for moderate cutting tasks. Balances speed and depth for efficiency.
3. Finishing: Designed for light cuts and finer details. It requires less force and provides a smooth finish.
4. Insert Shape: Carbide inserts come in various shapes, each designated by a letter, T, S, R. The shape affects how many edges can be used before the insert wears out.
5. Insert Size and Thickness: The size of an insert refers to its cutting-edge length, often measured in millimeters or inches. Thickness indicates how thick the insert is, which impacts its strength and application.
6. Nose Angle: The angle at the insert tip is called the nose angle. A larger angle provides more strength but requires more power from the machine. A smaller angle is weaker but can handle finer cuts better.
7. Clearance Angle: This angle prevents the insert from rubbing against the workpiece, which can cause wear.

Inserts can have:

• Positive clearance angles (greater than 0°) for smoother operations.
• Negative clearance angles (0°) for rougher tasks.

3. Material and Coating Identification

Carbide inserts are crafted from tungsten carbide and may feature coatings like titanium nitride (TiN) or aluminum oxide (Al2O3). These coatings enhance wear resistance, reduce friction, and extend tool life. The choice of material and coating should align with the workpiece material and machining conditions.

4. Understanding Carbide Insert Grades

Insert grades determine the hardness and toughness of the carbide material. Each grade has a unique code that usually includes letters and numbers. For example, a code might look like "P10" or "K20". The letters often indicate the type of material it’s best for (like steel or cast iron), while the numbers indicate hardness levels.

Grades are typically categorized as:

• P-Grade: For steel machining
• K-Grade: For cast iron
• M-Grade: For stainless steel
• S-Grade: For superalloys

Selecting the right grade ensures efficient cutting and minimizes tool wear.

5. Inspecting Insert Features

Inspecting their features is essential to ensure they perform well during machining when working with carbide inserts. Here’s a simple guide to understanding the key features that are typically inspected:

• Chip Breakers: Ensure efficient chip control and reduce heat buildup.
• Corner Radius: Larger radii improve durability but may affect precision.
• Hole Design: Central holes allow for secure clamping.

6. Compatibility with Toolholders

The insert must match the tool holder’s pocket size, shape, and clamping mechanism. Proper alignment and secure fastening ensure stability during machining.

7. Manufacturer Guidelines

Consulting manufacturer catalogs or resources is invaluable. Companies like Cobra Carbide provide comprehensive guides for selecting and identifying carbide inserts based on specific machining requirements.

Practical Tips for Carbide Insert Selection

1. Evaluate Machining Needs: Understand the workpiece material, desired finish, and cutting speed.
2. Follow Standards: Stick to ISO and ANSI standards for consistency.
3. Test for Performance: Conduct trials with different grades and geometries.

By mastering these aspects of carbide insert identification, you can achieve precision, efficiency, and cost-effectiveness in your machining operations.

Conclusion

Identifying carbide inserts doesn't have to be daunting. By understanding ISO/ANSI codes, recognizing shapes, and referring to practical resources like the table provided, you can confidently select the correct insert for any machining task. Explore detailed guides from trusted sources like Cobra Carbide. Contact us for additional support in optimizing your machining process.

With the proper knowledge, you can maximize productivity, enhance tool life, and achieve superior machining results.
