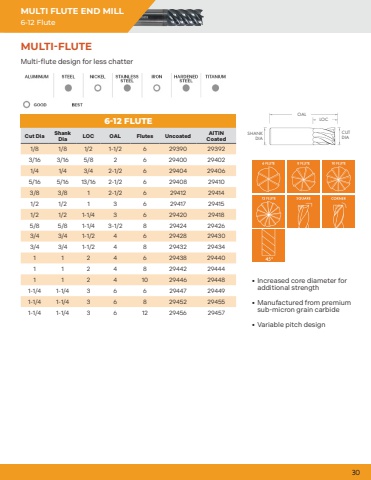

306-12 FluteMULTI FLUTE END MILLMulti-flute design for less chatterMULTI-FLUTE6-12 FLUTECut Dia Shank Dia LOC OAL Flutes Uncoated AlTiN Coated1/8 1/8 1/2 1-1/2 6 29390 293923/16 3/16 5/8 2 6 29400 294021/4 1/4 3/4 2-1/2 6 29404 294065/16 5/16 13/16 2-1/2 6 29408 294103/8 3/8 1 2-1/2 6 29412 294141/2 1/2 1 3 6 29417 294151/2 1/2 1-1/4 3 6 29420 294185/8 5/8 1-1/4 3-1/2 8 29424 294263/4 3/4 1-1/2 4 6 29428 294303/4 3/4 1-1/2 4 8 29432 294341 1 2 4 6 29438 294401 1 2 4 8 29442 294441 1 2 4 10 29446 294481-1/4 1-1/4 3 6 6 29447 294491-1/4 1-1/4 3 6 8 29452 294551-1/4 1-1/4 3 6 12 29456 29457SHANKDIACUTDIALOCOAL%u2022 Increased core diameter for additional strength%u2022 Manufactured from premium sub-micron grain carbide%u2022 Variable pitch design
