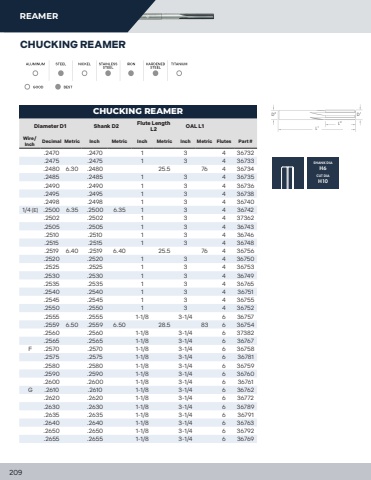

209REAMERCHUCKING REAMERL1D2 D1L2SHANK DIAH6H10CUT DIACHUCKING REAMERDiameter D1 Shank D2 Flute Length L2 OAL L1Wire/Inch Decimal Metric Inch Metric Inch Metric Inch Metric Flutes Part #.2470 .2470 1 3 4 36732.2475 .2475 1 3 4 36733.2480 6.30 .2480 25.5 76 4 36734.2485 .2485 1 3 4 36735.2490 .2490 1 3 4 36736.2495 .2495 1 3 4 36738.2498 .2498 1 3 4 367401/4 (E) .2500 6.35 .2500 6.35 1 3 4 36742.2502 .2502 1 3 4 37362.2505 .2505 1 3 4 36743.2510 .2510 1 3 4 36746.2515 .2515 1 3 4 36748.2519 6.40 .2519 6.40 25.5 76 4 36756.2520 .2520 1 3 4 36750.2525 .2525 1 3 4 36753.2530 .2530 1 3 4 36749.2535 .2535 1 3 4 36765.2540 .2540 1 3 4 36751.2545 .2545 1 3 4 36755.2550 .2550 1 3 4 36752.2555 .2555 1-1/8 3-1/4 6 36757.2559 6.50 .2559 6.50 28.5 83 6 36754.2560 .2560 1-1/8 3-1/4 6 37382.2565 .2565 1-1/8 3-1/4 6 36767F .2570 .2570 1-1/8 3-1/4 6 36758.2575 .2575 1-1/8 3-1/4 6 36781.2580 .2580 1-1/8 3-1/4 6 36759.2590 .2590 1-1/8 3-1/4 6 36760.2600 .2600 1-1/8 3-1/4 6 36761G .2610 .2610 1-1/8 3-1/4 6 36762.2620 .2620 1-1/8 3-1/4 6 36772.2630 .2630 1-1/8 3-1/4 6 36789.2635 .2635 1-1/8 3-1/4 6 36791.2640 .2640 1-1/8 3-1/4 6 36763.2650 .2650 1-1/8 3-1/4 6 36792.2655 .2655 1-1/8 3-1/4 6 36769
